Exceed Your Design Requirements by Utilizing Custom Tubing

When it comes to custom tubing, our manufacturing team is fully equipped to construct to your exact specifications, saving you time and complexity. We cut, form, produce, test, and label every piece, so you receive a single assembly that’s ready to integrate directly into your fluidics system.

IDEX Health & Science Customized Tubing Capabilities

We offer a comprehensive line of custom tubing options that meet the increasingly demanding requirements of today’s high-performance analytical fluidic systems including PEEK, Tefzel, Dupont Telfon® and more.

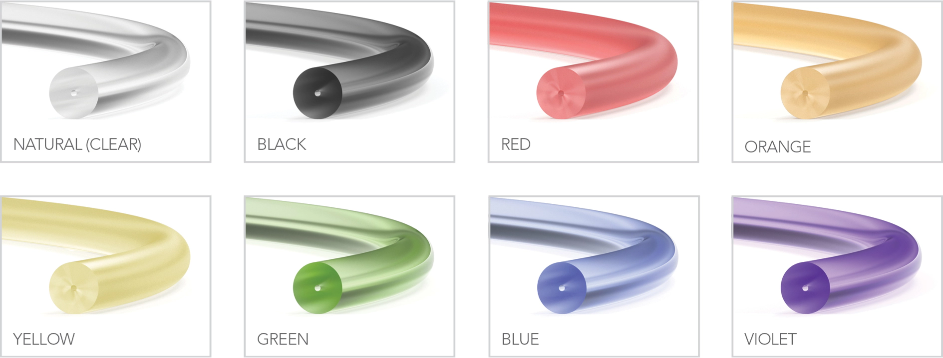

Colors

  • Natural (Clear)
  • Black
  • Red
  • Violet
  • Yellow
  • Blue
  • Orange
  • Green
  • More available upon request

Materials

  • DuPont Teflon® brand resin FEP, PFA, PFA high purity, PFA high purity plus
  • Tefzel (ETFE)

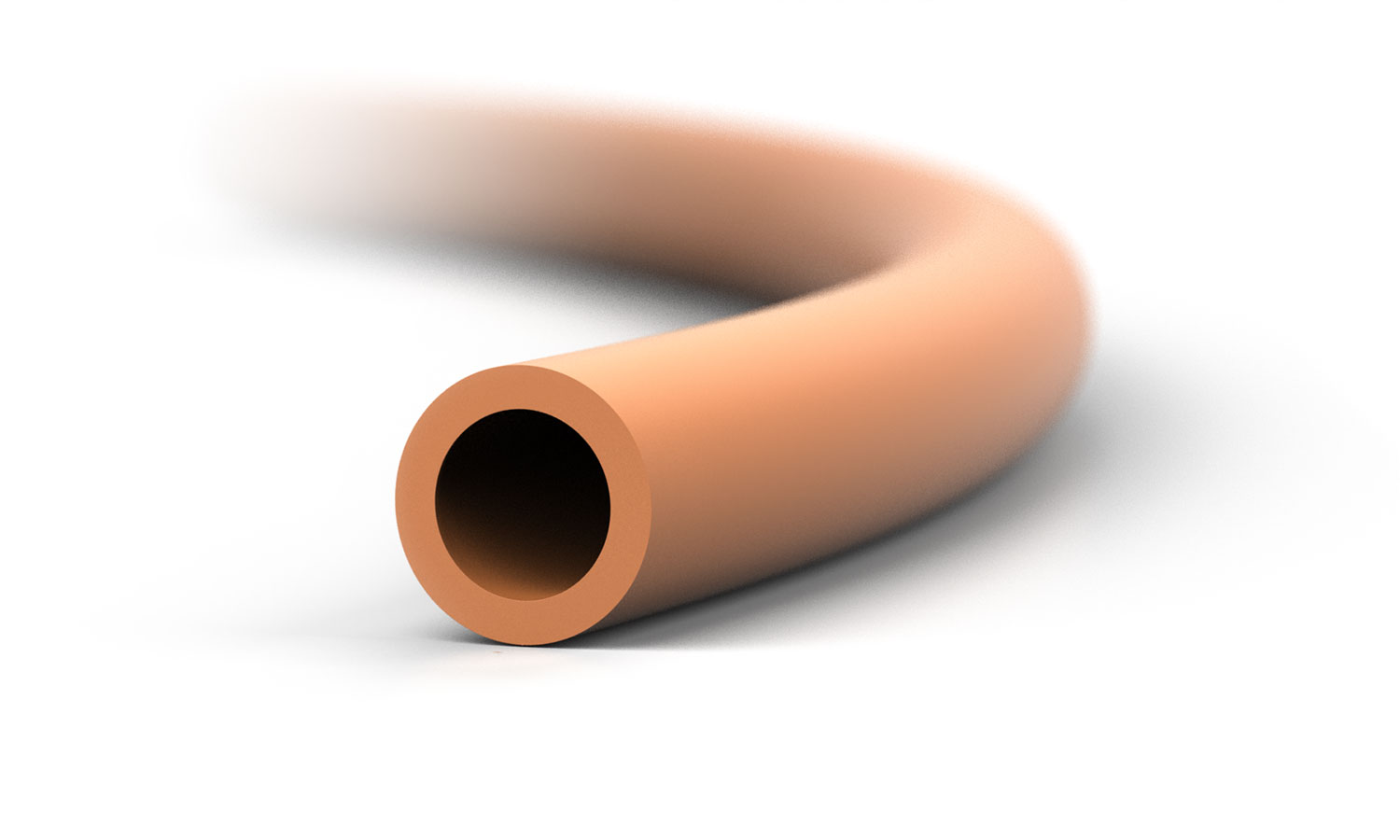

  • PEEK
  • Additional materials and custom blending available upon request

Dimensions

  • Outer diameter range: 360 μm to 7.9 mm
  • Inner diameter range: 20 μm to 6.4 mm
  • ±25 μm typical ID/OD tolerances for 1.6 mm OD tubing
  • ±75-100 μm typical ID/OD tolerances for 3.2 mm OD tubing
