Tools & Drawings

Optical Filter Housing Drawings

These schematic drawings illustrate housing for our standard sized filters.


12.5mm x 3.5mm Housing

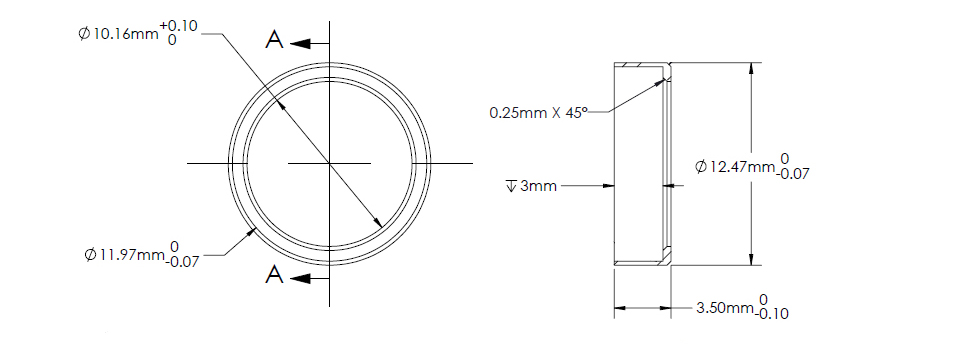

12.5 x 3.5mm Filter Housing

Download STEP File

12.5mm x 5.0mm Housing

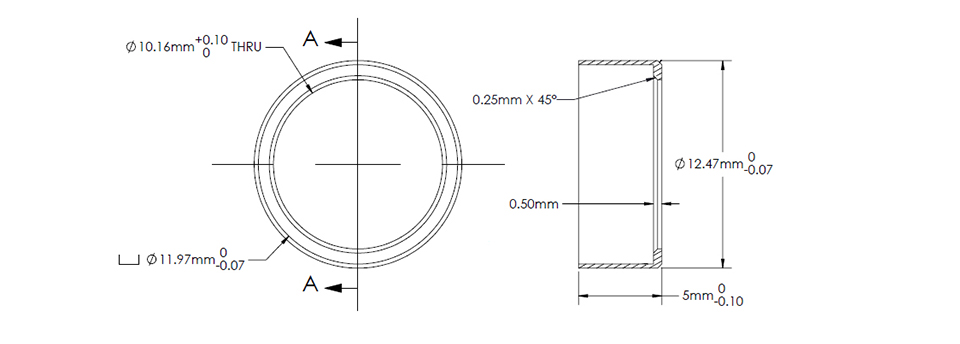

12.5mm x 5.0mm filter housing drawing

Download STEP FIle


25mm x 3.5mm Housing

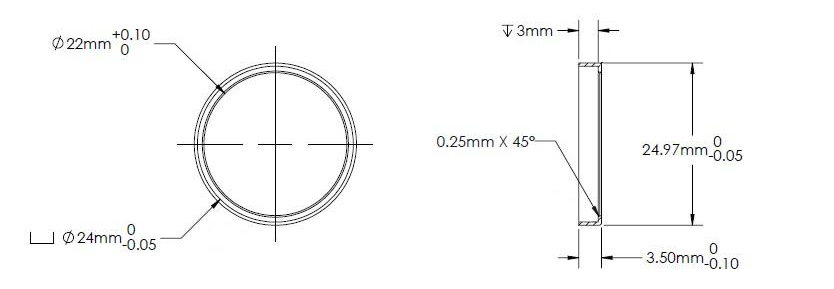

25 x 3.5mm Filter Housing

Download STEP File

25mm x 5.0mm Housing

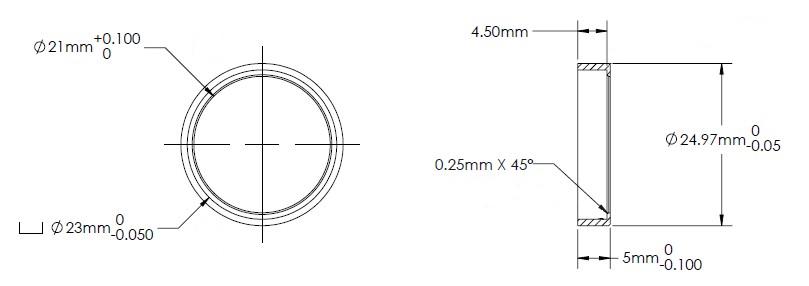

25 x 5.00mm Filter Housing

Download STEP File

Need additional assistance, please contact our technical support team at semrock@idexcorp.com.
