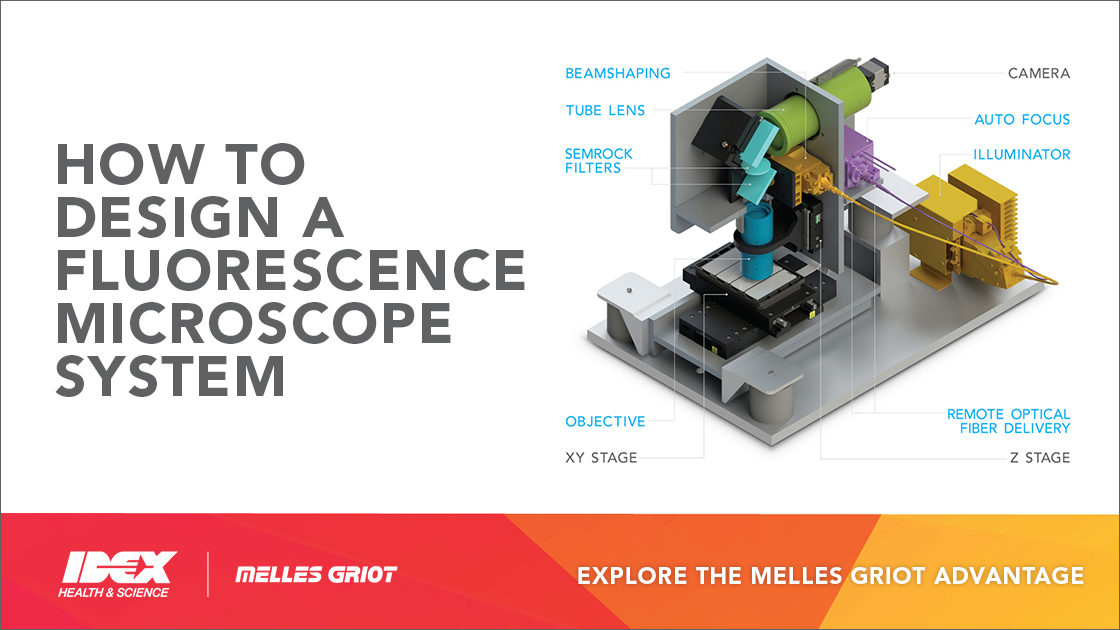

When you set out to build a fluorescence microscope, the focus is often on the components: which lens, which filter, and which camera. However, a high-performance system is not just a collection of parts—it is a series of interconnected architectural decisions.
Many developers fear that moving away from off-the-shelf components into a custom design will be overwhelming. The goal of collaboration is to demystify the instrument development process by providing a clear, phased roadmap. At IDEX Health & Science, we follow a rigorous development pathway to ensure every instrument is optimized for its specific application.

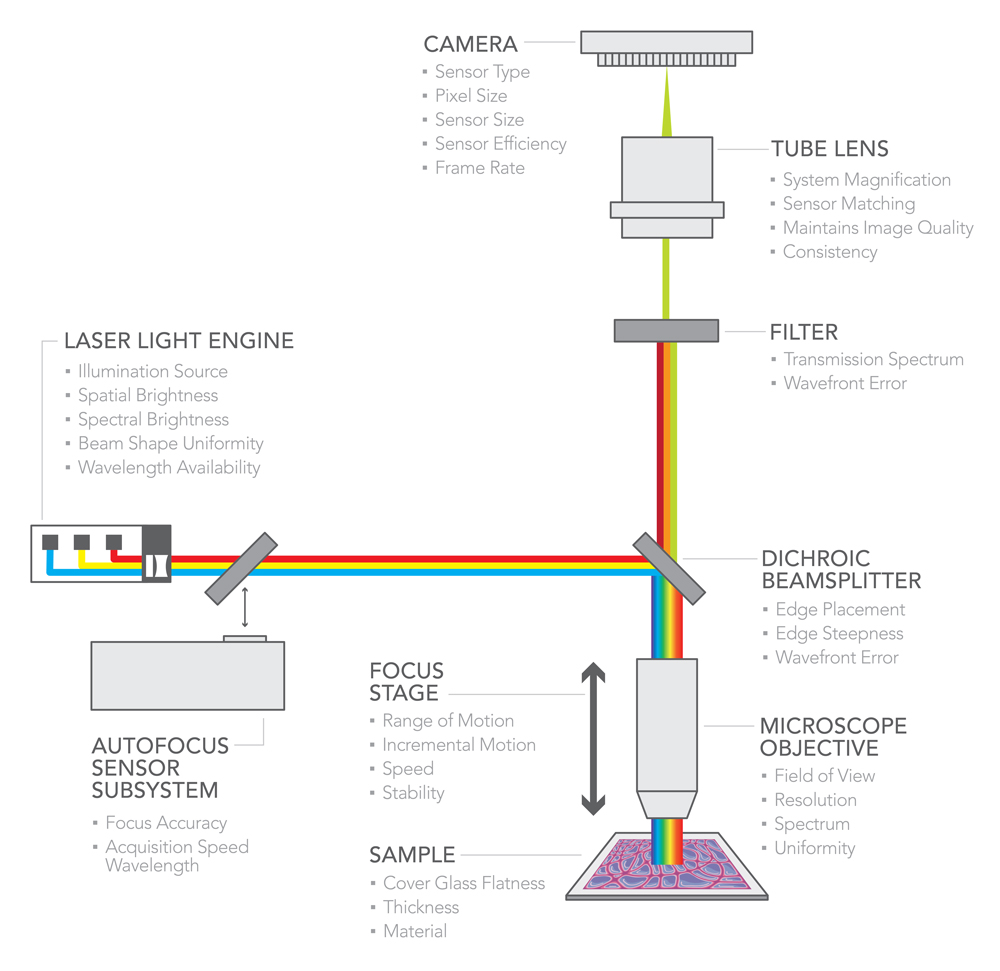

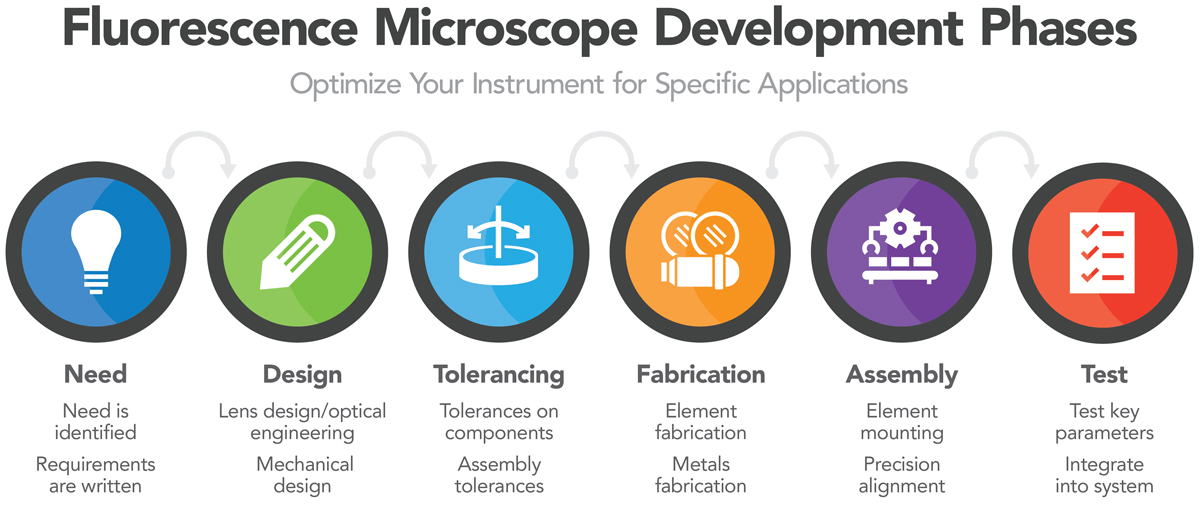

The Collaborative Development Pathway
Disclaimer: The considerations outlined here highlight a few key aspects of optical system design, but they are not exhaustive. Real-world microscope design involves many additional factors, trade-offs, and application-specific requirements that extend beyond the scope of this overview.
- Need: Establishing the key requirements
The architecture of your microscope must be reverse-engineered from the specimen you intend to image. During this phase, we identify the key requirements and define the design specifications:
- Resolution & NA: Determining the minimum separation of features to dictate the required Numerical Aperture (NA).
- Spectral Range: Defining your fluorophores sets the color correction requirements and filter steepness.
- Throughput & Field of View: Calculating how much data is needed per hour to determine FOV and stage speed.
- Design: Solving for Architecture
Once the requirements are written, our Lens Design, Optical Engineering, and Mechanical Design teams work in tandem:
- Focal Length Optimization: Opting for a short focal length for compactness or a long focal length to support tighter spectral transitions.
- Camera Configuration: Determining whether a single- or multi-camera configuration is optimal will be determined by throughput requirements balanced against cost and complexity.
- Mechanical Integrity: Even the best lens design is useless if the mounting isn't precise and stable; we use time-tested mounting techniques to ensure stable and repeatable optical performance.
- Tolerancing: Ensuring Manufacturability
We don't just design for a single laboratory instrument; we perform rigorous Tolerancing on both individual components and the final assembly. This ensures that when the system moves to manufacturing, it performs consistently across every unit produced.
- Fabrication & Assembly: Bringing the Blueprint to Life
During these stages, we handle Element Fabrication and Metals Fabrication, followed by Element Mounting. We then use advanced manufacturing techniques to ensure Precision Alignment and consistent performance.
- Test: Validating the Results
The final stage involves Testing Key Parameters and Integrating into the System. We don’t consider the project done until the technical accuracy meets the real-world biological requirements identified in step one.
Partnering with Melles Griot Expertise
Ultimately, building a high-performance fluorescence microscope is about managing the friction between biological needs and physical constraints. In collaborating with our team, you aren’t just buying a lens; you are accessing a decades-long legacy of precision engineering.
Our Melles Griot Optical System Capabilities are built to handle the entire lifecycle of your instrument. From initial lens design and mechanical engineering to full-scale cleanroom assembly and rigorous system testing, we provide a vertically integrated solution that ensures your instrument performs as well in the field as it does on the whiteboard. When you’re ready to move beyond the parts list, we’re here to help you build the architecture of the future.
