Step through the Spectrum with Nanopede™ Bandpass Optical Filters

Jun 27, 2024 by IDEX Health & Science

NEW in 2024: Nanopede Flight 2


Flow cytometry interrogates cells through scattered light measurements and fluorescent markers. In spectral flow cytometry, the fluorescence is collected across the entire spectrum using discrete, back-to-back (spectrally adjacent) optical filters. Then the photons are binned such that spectral unmixing can resolve which fluorescent markers are present in the interrogated cell. As such, spectral flow cytometry requires filters covering the UV, visible, and NIR in discrete steps, which may lead to a desire to balance instrument cost and optical filter performance.

Shop the Nanopede Filter Family  Shop Flight 1 Complete Set  Shop Flight 2 Complete Set

Nanopede Flight 2

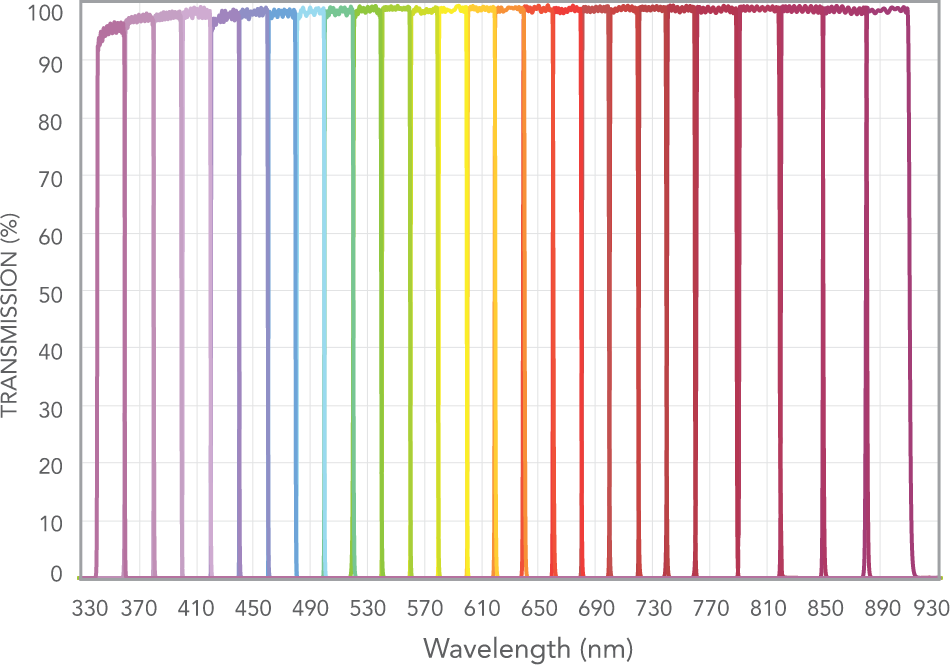

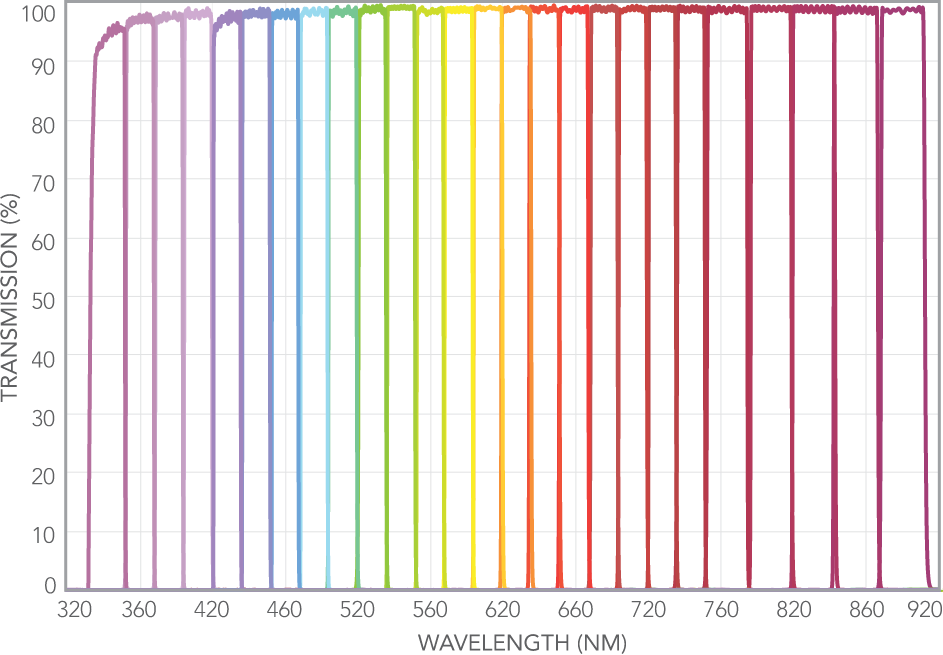

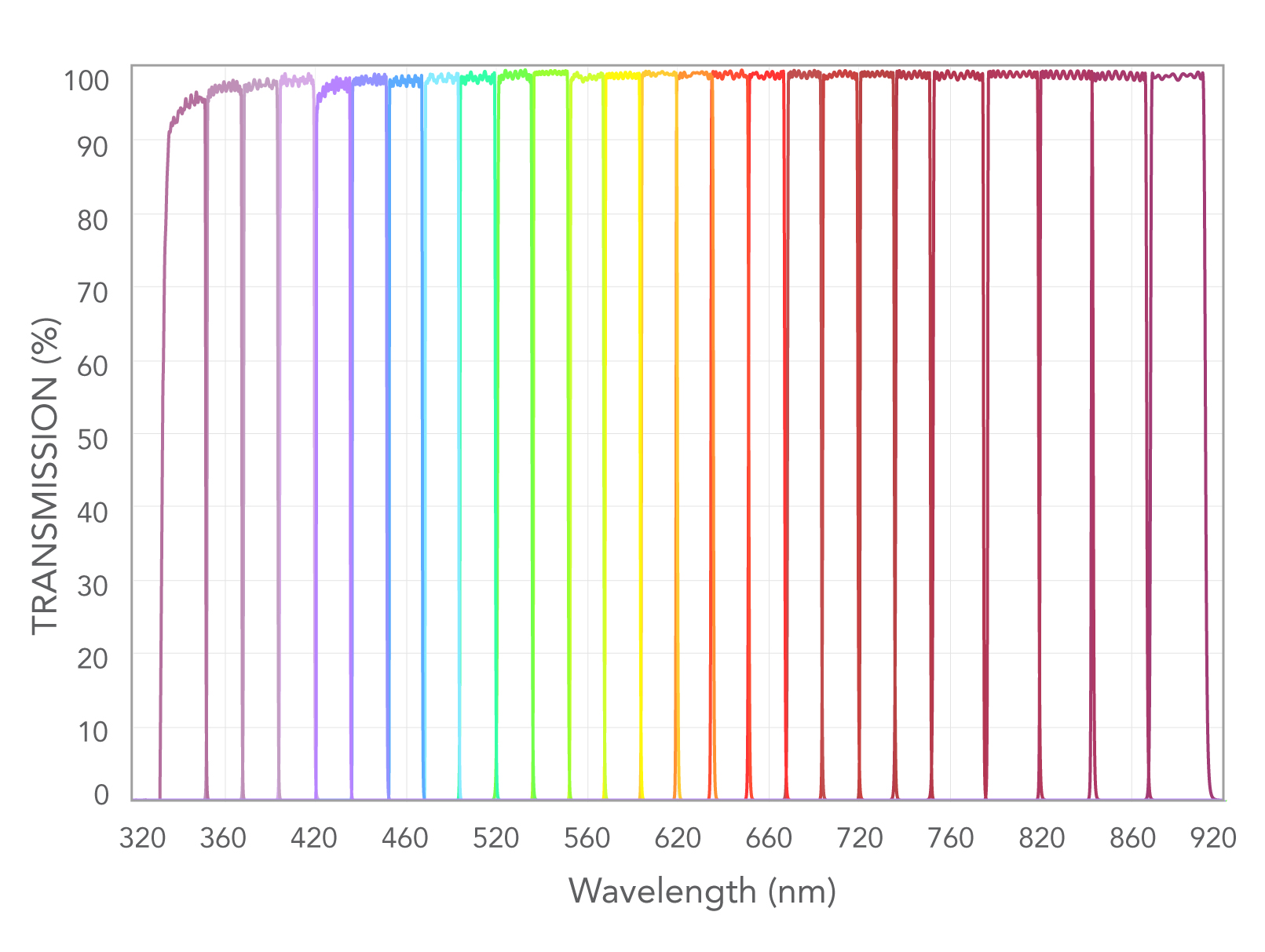

Figure 1: Zoomed-in section depicting the full coverage of Nanopede Flight 1 and Flight 2 filters.

IDEX Health & Science understands these needs, and we are proud to announce our latest Semrock bandpass optical filters: Nanopede™. These essential performance and cost-effective filters cover the near UV and visible spectrum in even (Flight 1) and odd (Flight 2) 20 nm Full-Width, Half-Max (FWHM) steps. Moving into the NIR, the FWHM increases to 30 nm. The fifty-two filters in the Nanopede family have been designed with your application in mind. Both flights are also available for purchase as full sets.

While Nanopede was initially designed for flow cytometry and point-based detection applications, these versatile filters can also be used extensively for breadboarding or kept on the shelf for use as needed.

Features:

  • Coverage of the spectrum in discrete steps so you can test several configurations and define the best combinations possible.
  • ODavg > 5 blocking from 330 to 900 nm, so you can optimize for the blocking depth and range you need.
  • ODabs > 5 at key laser wavelengths to assist in reducing light source bleedthrough.
  • Hard coated for consistent performance with Semrock quality for spectral repeatability and proven reliability for your most demanding applications.
  • Availability in 12.5 mm housed standard size filters with 10 mm clear aperture, providing a compact filter package. (Custom sizing is also available to fit your unique instrument footprint.)
  • Available now to support your immediate prototyping needs through future volume production requirements.

NEW IN 2024: FLIGHT 2

UV / VISVISNIR
Flight 1Flight 2Flight 1Flight 2Flight 1Flight 2
FBP01-340/17-12.5
FBP01-350/17-12.5FBP01-520/15-12.5
FBP01-530/15-12.5FBP01-700/13-12.5
FBP01-710/13-12.5
FBP01-360/16-12.5FBP01-370/16-12.5FBP01-540/15-12.5
FBP01-550/15-12.5FBP01-720/13-12.5
FBP01-730/13-12.5
FBP01-380/16-12.5
FBP01-390/16-12.5FBP01-560/14-12.5
FBP01-570/14-12.5FBP01-740/13-12.5
FBP01-750/13-12.5
FBP01-400/16-12.5FBP01-410/16-12.5FBP01-580/14-12.5
FBP01-590/14-12.5FBP01-765/22-12.5
FBP01-775/22-12.5
FBP01-420/16-12.5FBP01-430/16-12.5FBP01-600/14-12.5
FBP01-610/14-12.5FBP01-795/22-12.5
FBP01-805/22-12.5
FBP01-440/16-12.5FBP01-450/16-12.5FBP01-620/14-12.5FBP01-630/14-12.5FBP01-825/22-12.5FBP01-835/22-12.5
FBP01-460/15-12.5FBP01-470/15-12.5FBP01-640/14-12.5
FBP01-650/14-12.5FBP01-855/21-12.5FBP01-865/21-12.5
FBP01-480/15-12.5FBP01-490/15-12.5FBP01-660/13-12.5FBP01-670/13-12.5FBP01-885/21-12.5FBP01-895/21-12.5
FBP01-500/15-12.5FBP01-510/15-12.5FBP01-680/13-12.5
FBP01-690/13-12.5

The Nanopede filter family provides a value approach to optical performance for your application and marks the beginning of a new generation of Semrock optical filters to match the rapidly developing and innovative market. Our understanding of essential filter performance is why we offer an off-the-shelf filter family designed for versatility with a contained cost. Partner with us on custom optical filters to meet your specific application needs.

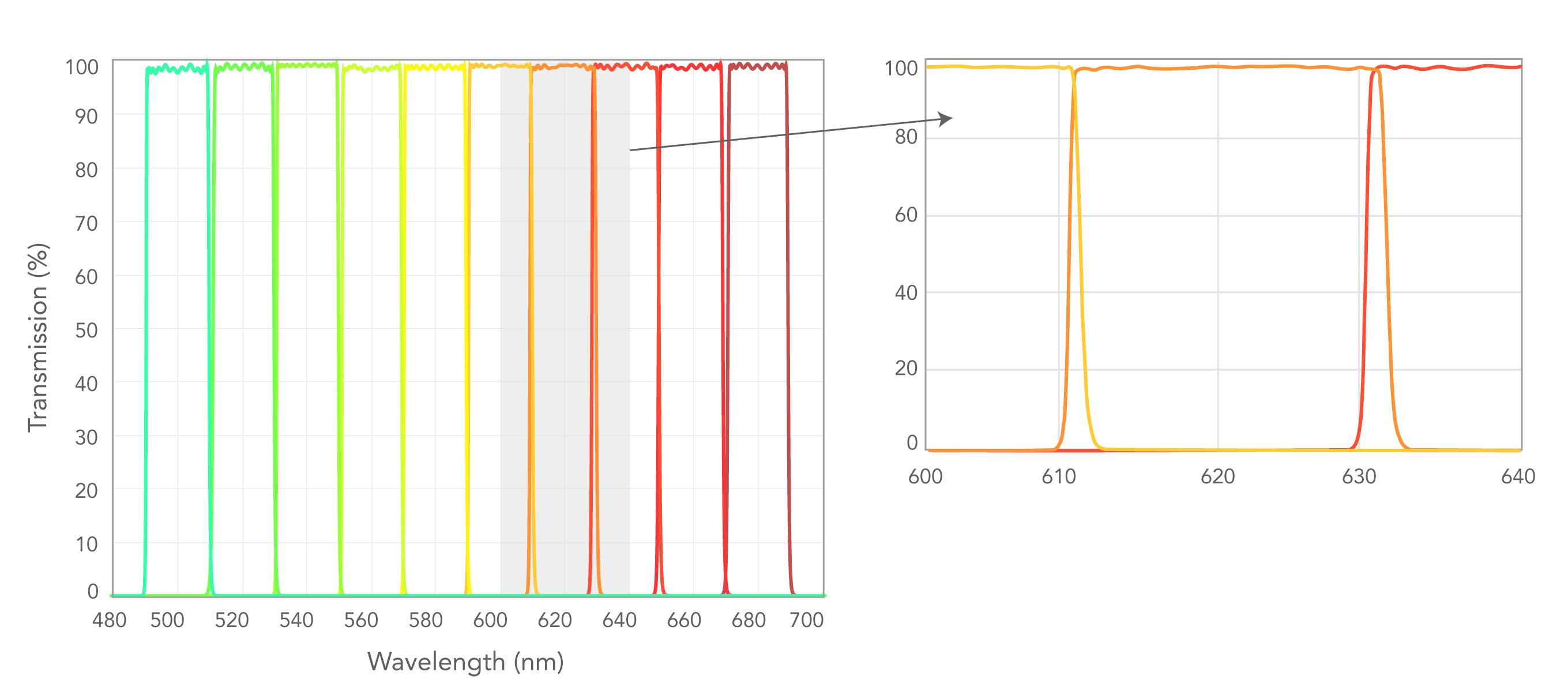

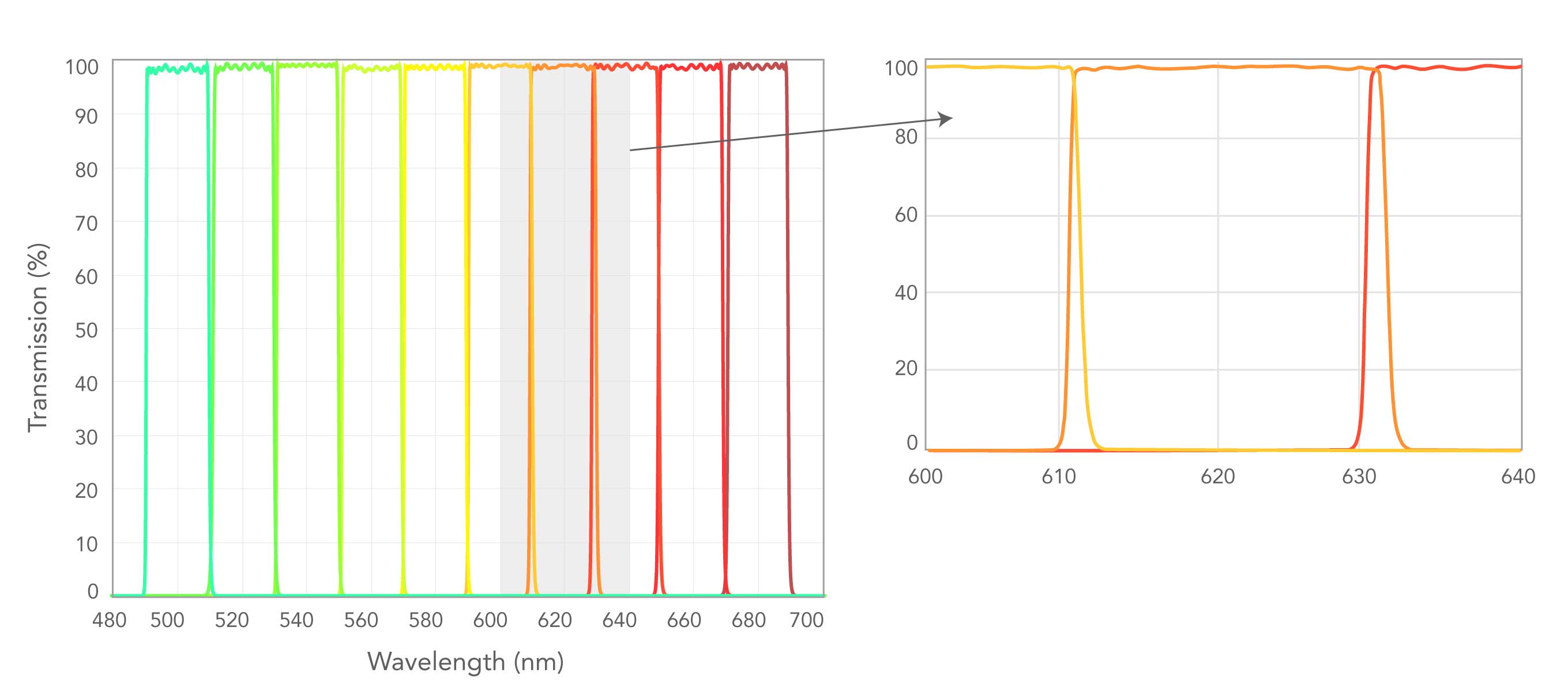

Nanopede Filter Family transmission data and close-up of FBP01-620/14 with its two neighboring filters

Figure 2: The Nanopede bandpass optical filter family offers T > 93%. A close-up of FBP01-620/14 with its two neighboring filters is on the right.

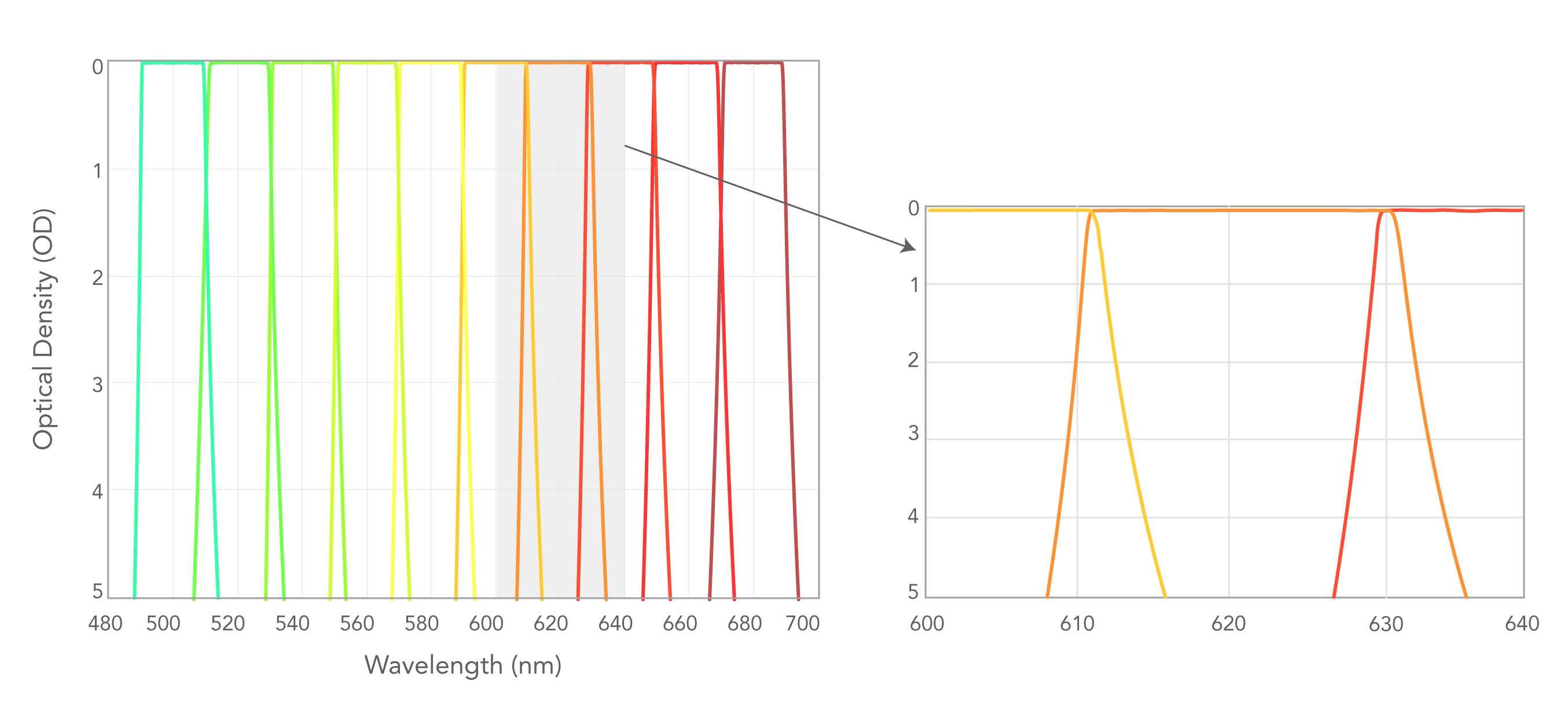

Nanopede filters offer OD5 blocking and close-up of FBP01-620/14 with its two neighboring filters

Figure 3: The Nanopede bandpass optical filter family offers OD5 blocking. A close-up of FBP01-620/14 with its two neighboring filters is on the right.
