LiteTouch TinyTight Fittings Assembly

How to use the LiteTouch^® TinyTight^™ Fittings Assembly

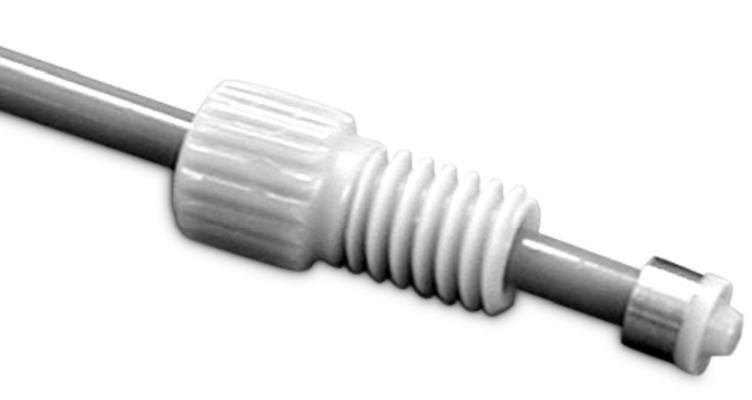

1. Slide the nut, steel compression ring and PEEK^™ ferrule, in that order, onto the tubing (see image).
2. The side of the ring with the wider flat surface should face toward the nut and the narrow edged side of the ring toward the ferrule.
3. Insert into the receiving port, ensuring the tubing is bottomed out. Tighten the fitting finger tight.
