Conductive Microfilter Assembly Instructions

by IDEX Health & Science

Stainless Steel or Titanium

The Conductive Microfilter Assembly comes completely assembled. After some repeated use, the ferrules included as part of the assembly may need to be replaced for continued optimal performance. If an increase in backpressure is noticed, the Frit Capsule may need to be replaced. See diagram below for proper assembly.

Please Note: Hold the tubing flush to the bottom of the port while tightening assembly.

Stainless Steel Filters - Tan Nuts

Titanium Filters - Black Nuts

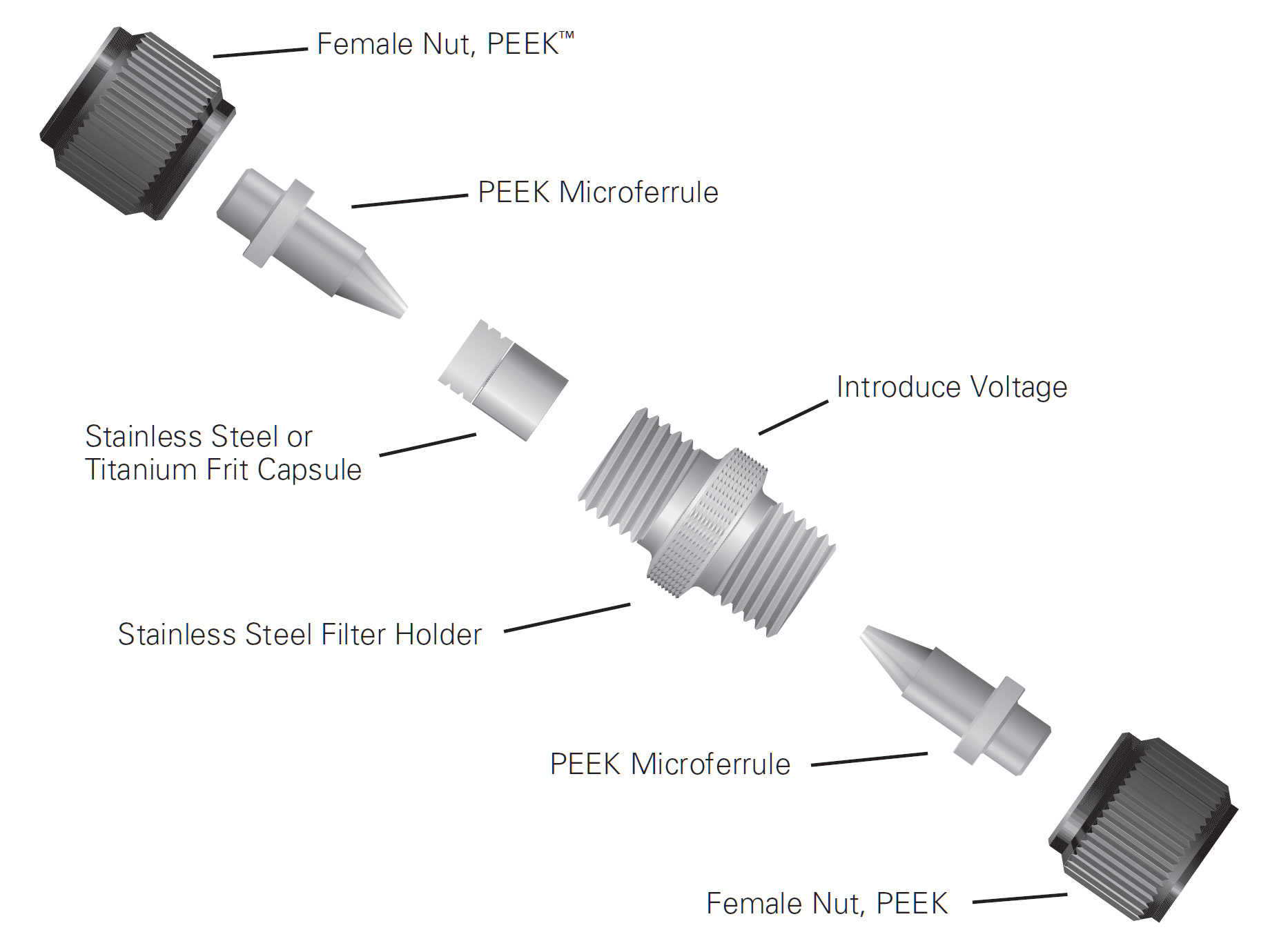

Conductive Microfilter Assembly Drawing from IDEX Health & Science
