Bottom-of-the-Bottle™ Solvent Filter

by IDEX Health & Science

Instructions For Use

To ensure proper operation of the filter unit, make sure that the filter is positioned in a vertical orientation. Once the filter cup becomes old and no longer provides acceptable filtering of your solvent you may replace the filter cup portion of the filter unit.

  1. To attach the tubing to the filter, follow the fittings instructions.
  2. To replace the filter cup, simply loosen the lock nut slightly, then wiggle the filter cup while pulling in a downward fashion until the filter cup pops off the unit.
  3. Gently replace the new filter cup on the unit and firmly seat the cup against the fluoropolymer seal.
  4. Retighten the lock nut and replace in your solvent bottle.

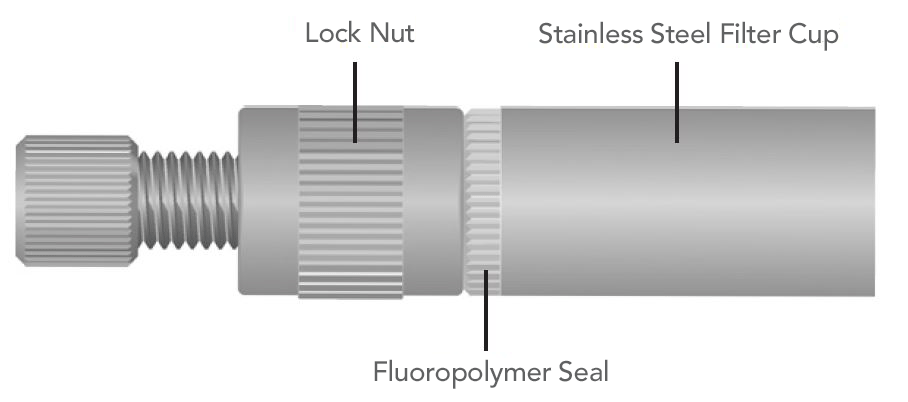

solvent filter sealing diagram
