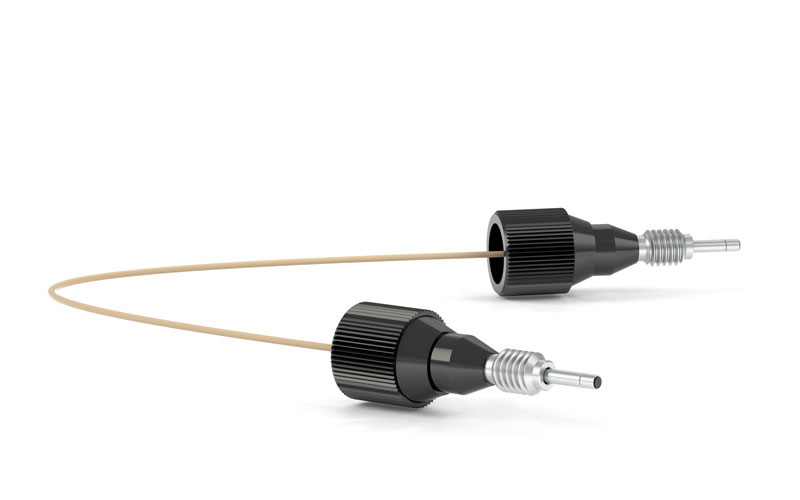

MarvelXACT Stainless Steel UHPLC Connection Systems
MarvelXACT™ Stainless Steel UHPLC Connection Systems have been designed to eliminate the risk of under-tightening or over-tightening with its patented torque limiting mechanism. Its patented unique fitting gives a haptic "click" feedback when it reaches the optimum torque. MarvelXACT incorporates MarvelX sealing technology which provides face sealing (sealing at the port bottom) eliminating additional internal volume, minimizing risk of carry over, peak tailing and broadening.
It incorporates flexible 1/32" OD tubing for easy routing...
More Information >
MarvelXACT™ Stainless Steel UHPLC Connection Systems have been designed to eliminate the risk of...
More Information >
total selected
Clear selection
MarvelXACT™ Stainless Steel 100µm ID
UPFS-7100150 / -
- 150 mm length
- 316 stainless steel tubing
- Torque limiting fitting
- Fingertight up to 19,000 psi (1310 bar)
MarvelXACT™ Stainless Steel 100µm ID
UPFS-7100250 / -
- 250 mm length
- 316 stainless steel tubing
- Torque limiting fitting
- Fingertight up to 19,000 psi (1310 bar)
MarvelXACT™ Stainless Steel 100µm ID
UPFS-7100350 / -
- 350 mm length
- 316 stainless steel tubing
- Torque limiting fitting
- Fingertight up to 19,000 psi (1310 bar)
MarvelXACT™ Stainless Steel 100µm ID
UPFS-7100500 / -
- 500 mm length
- 316 stainless steel tubing
- Torque limiting fitting
- Fingertight up to 19,000 psi (1310 bar)
MarvelXACT™ Stainless Steel 100µm ID
UPFS-7100600 / -
- 600 mm length
- 316 stainless steel tubing
- Torque limiting fitting
- Fingertight up to 19,000 psi (1310 bar)
MarvelXACT™ Stainless Steel 125µm ID
UPFS-7125150 / -
- 150 mm length
- 316 stainless steel tubing
- Torque limiting fitting
- Fingertight up to 19,000 psi (1310 bar)
MarvelXACT™ Stainless Steel 125µm ID
UPFS-7125250 / -
- 250 mm length
- 316 stainless steel tubing
- Torque limiting fitting
- Fingertight up to 19,000 psi (1310 bar)
MarvelXACT™ Stainless Steel 125µm ID
UPFS-7125350 / -
- 350 mm length
- 316 stainless steel tubing
- Torque limiting fitting
- Fingertight up to 19,000 psi (1310 bar)
MarvelXACT™ Stainless Steel 125µm ID
UPFS-7125500 / -
- 500 mm length
- 316 stainless steel tubing
- Torque limiting fitting
- Fingertight up to 19,000 psi (1310 bar)
MarvelXACT™ Stainless Steel 125µm ID
UPFS-7125600 / -
- 600 mm length
- 316 stainless steel tubing
- Torque limiting fitting
- Fingertight up to 19,000 psi (1310 bar)
MarvelXACT Stainless Steel UHPLC Connection Systems
MarvelXACT™ Stainless Steel UHPLC Connection Systems have been designed to eliminate the risk of under-tightening or over-tightening with its patented torque limiting mechanism. Its patented unique fitting gives a haptic "click" feedback when it reaches the optimum torque. MarvelXACT incorporates MarvelX sealing technology which provides face sealing (sealing at the port bottom) eliminating additional internal volume, minimizing risk of carry over, peak tailing and broadening.
It incorporates flexible 1/32" OD tubing for easy routing throughout your instrument and can be connected and disconnected more than 100 times. The connection system is compatible with 10-32 coned receiving ports and is absolutely finger-tight — no tool required.
