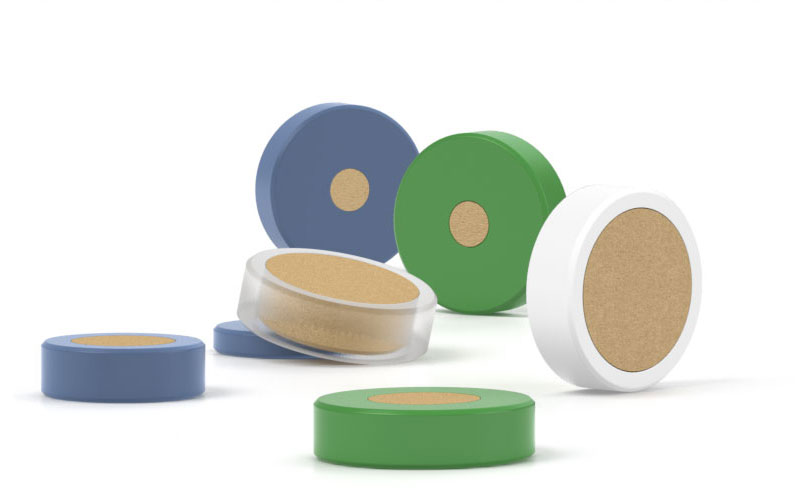

PEEK Frits
PEEK Frits offer exceptionally uniform porosity. This property ensures longer filtration life and consistent frit-to-frit swept volumes. The PEEK polymer frit discs are biocompatible and inert to most solvents, making them well-suited for bioanalytical applications. PEEK’s robust properties make these products suitable for low and high pressure applications.
PEEK Frits offer exceptionally uniform porosity. This property ensures longer filtration life and...
More Information >
total selected
Clear selection

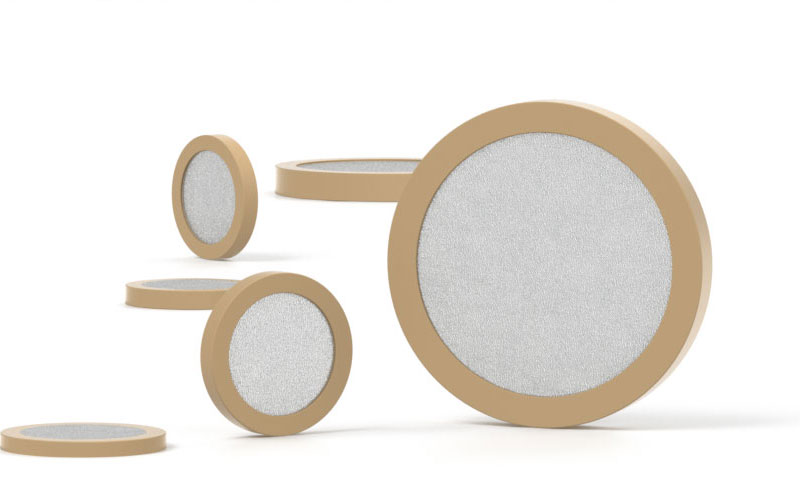

Frit Assembly
A-707 / -
- Ø.247" OD PCTFE frit ring
- Ø.195" OD PEEK frit
- 0.5µm filtration rating
- 0.064" thick
Frit Assembly
A-720 / -
- Ø.248" OD PCTFE frit ring
- Ø.125" OD PEEK frit
- 10µm filtration rating
- 0.077" thick
Frit Assembly
OC-802 / -
- Ø.560" OD PCTFE frit ring
- Ø.458" OD PEEK steel frit
- 2µm filtration rating
- 0.071" thick
Frit Assembly
OC-815 / -
- Ø.375" OD PCTFE frit ring
- Ø.293" OD PEEK frit
- 5µm filtration rating
- 0.062" thick
Frit Assembly
A-708 / -
- Ø.200" OD PCTFE frit ring
- Ø.062" OD PEEK frit
- 2µm filtration rating
- 0.065" thick
Frit Assembly
A-703 / -
- Ø.250" OD PCTFE frit ring
- Ø.094" OD PEEK frit
- 0.5µm filtration rating
- 0.065" thick
Frit Assembly
A-700 / -
- Ø.247" OD PCTFE frit ring
- Ø.062" OD PEEK frit
- 0.5µm filtration rating
- 0.065" thick
Frit Assembly
A-704 / -
- Ø.247" OD PCTFE frit ring
- Ø.125" OD PEEK frit
- 2µm filtration rating
- 0.065" thick
Frit Assembly
A-735 / -
- Ø.192" OD PCTFE frit ring
- Ø.045" OD PEEK frit
- 0.5µm filtration rating
- 0.033" thick
Frit Assembly
OC-803 / -
- Ø.560" OD PCTFE frit ring
- Ø.457" OD PEEK frit
- 10µm filtration rating
- 0.077" thick
PEEK Frits
PEEK Frits offer exceptionally uniform porosity. This property ensures longer filtration life and consistent frit-to-frit swept volumes. The PEEK polymer frit discs are biocompatible and inert to most solvents, making them well-suited for bioanalytical applications. PEEK’s robust properties make these products suitable for low and high pressure applications.
