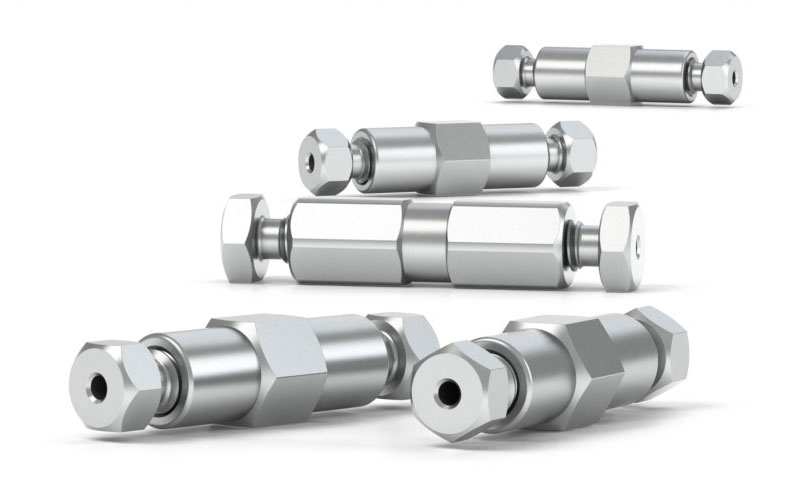

VHP Stainless Steel ZDV Unions
These very high pressure, zero-dead-volume (ZDV) unions are precision machined from 316 stainless steel, carefully passivated, then thoroughly rinsed. Each comes complete with stainless steel nuts and ferrules. It is supplied with fittings for 1/16” OD or 1/8” OD tubing. Union assemblies have a pressure rating of 20,000 psi (1,380 bar) or higher.
These very high pressure, zero-dead-volume (ZDV) unions are precision machined from 316 stainless...
More Information >
total selected
Clear selection
Union Assembly
U-437 / -
- 10-32 coned port for use with 1/16" OD tubing
- Ø.010" thru hole
- Stainless steel material
- Includes U-400 nut and U-401 ferrules
- Recommended for pressures up to 20,000 psi (1380 bar)
Union Assembly
U-411 / -
- 10-32 coned port for use with 1/16" OD tubing
- Ø.007" thru hole
- Stainless steel material
- Includes U-400 nut and U-401 ferrules
- Recommended for pressures up to 20,000 psi (1380 bar)
Union Assembly
U-402 / -
- 10-32 coned port for use with 1/16" OD tubing
- Ø.020" thru hole
- Stainless steel material
- Includes U-400 nut and U-401 ferrules
- Recommended for pressures up to 20,000 psi (1380 bar)
Union Assembly
U-435 / -
- 10-32 coned port for use with 1/16" OD tubing
- Ø.010" thru hole
- Stainless steel material
- Includes U-400 nut and U-401 ferrules
- Recommended for pressures up to 20,000 psi (1380 bar)
Union Assembly, VHP
UH-402 / -
- 10-32 coned port for use with 1/16" OD tubing
- Ø.020" thru hole
- Stainless steel material
- Includes VHP-200 fittings
- Recommended for pressures up to 30,000 psi (2070 bar)
Union Assembly, Valco® Compatible
U-322 / -
- 10-32 coned port for use with 1/16" OD tubing
- Ø.020" thru hole
- Stainless steel material
- Includes U-320 nuts and U-321 ferrules
- Recommended for pressures up to 20,000 psi (1380 bar)
Union Assembly, Waters® Compatible
U-412 / -
- 10-32 coned port for use with 1/16" OD tubing
- Ø.020" thru hole
- Stainless steel material
- Includes U-320 nuts and U-321 ferrules
- Recommended for pressures up to 20,000 psi (1380 bar)
Union Assembly, ZDV
U-438 / -
- 10-32 coned port for use with 1/16" OD tubing
- True ZDV union with 1/16" thru and no internal web
- Stainless steel material
- Includes U-400 nut and U-401 ferrules
- Recommended for pressures up to 20,000 psi (1380 bar)
Union Body
U-411-01 / -
- 10-32 coned port for use with 1/16" OD tubing
- Ø.007" thru hole
- Stainless steel material
- Recommended for pressures up to 20,000 psi (1380 bar)
Union Body, ZDV
U-438-01 / -
- 10-32 coned port for use with 1/16" OD tubing
- True ZDV union with 1/16" thru and no internal web
- Stainless steel material
- Recommended for pressures up to 20,000 psi (1380 bar)
1 of 1
VHP Stainless Steel ZDV Unions
These very high pressure, zero-dead-volume (ZDV) unions are precision machined from 316 stainless steel, carefully passivated, then thoroughly rinsed. Each comes complete with stainless steel nuts and ferrules. It is supplied with fittings for 1/16” OD or 1/8” OD tubing. Union assemblies have a pressure rating of 20,000 psi (1,380 bar) or higher.
