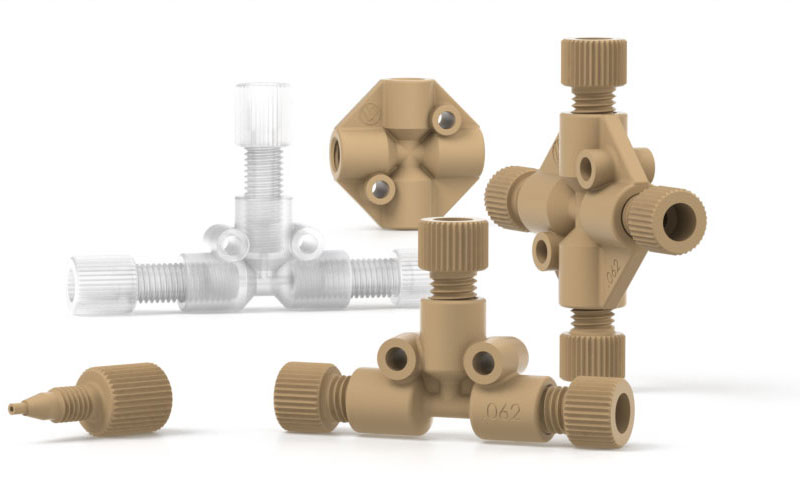

Tee & Crosses
Low Pressure Tees and Crosses offer a unique design for joining multiple tubing and fittings together. They are available in two inert polymers and can handle pressures to 500 psi (34 bar) or 1,000 psi (69 bar), depending upon the configuration of the products. Our Tees & Crosses are designed with handy mounting holes. All ETFE Tees and Crosses ship complete with 1/4-28 PFA Flangeless nuts and ETFE ferrules, while their PEEK polymer counterparts ship with 1/4-28 PEEK nuts and ETFE ferrules.
Low Pressure Tees and Crosses offer a unique design for joining multiple tubing and fittings...
More Information >
total selected
Clear selection
Cross Assembly
P-635 / -
- 1/4-28 flat bottom for 1/8" OD tubing
- Ø.050" thru hole
- Natural ETFE material
- Recommended for pressures up to 500 psi (34 bar)
- Includes P-345 nuts and P-300N ferrules
Cross Assembly
P-722 / -
- 1/4-28 flat bottom for 1/16" OD tubing
- Ø.020" thru hole
- Natural PEEK material
- Recommended for pressures up to 1000 psi (69 bar)
- Includes P-235 nuts and P-235 ferrules
Cross Assembly
P-723 / -
- 1/4-28 flat bottom for 1/8" OD tubing
- Ø.050" thru hole
- Natural PEEK material
- Recommended for pressures up to 500 psi (34 bar)
- Includes P-335 nuts and P-300 ferrules
Cross Assembly
P-634 / -
- 1/4-28 flat bottom for 1/16" OD tubing
- Ø.020" thru hole
- Natural ETFE material
- Recommended for pressures up to 1000 psi (69 bar)
- Includes P-245 nuts and P-200N ferrules
Cross Body
P-635-01 / -
- 1/4-28 flat bottom port
- Ø.050" thru hole
- Natural ETFE material
- Recommended for pressures up to 500 psi (34 bar)
- 1 per pack
Tee Assembly
P-633 / -
- 1/4-28 flat bottom for 1/8" OD tubing
- Ø.050" thru hole
- Natural ETFE material
- Recommended for pressures up to 500 psi (34 bar)
- Includes P-345 nuts and P-300N ferrules
Tee Assembly
P-712 / -
- 1/4-28 flat bottom for 1/16" OD tubing
- Ø.020" thru hole
- Natural PEEK material
- Recommended for pressures up to 1000 psi (69 bar)
- Includes P-235 nuts and P-200 ferrules
Tee Assembly
P-714 / -
- 1/4-28 flat bottom for 1/16" OD tubing
- Ø.040" thru hole
- Natural PEEK material
- Recommended for pressures up to 1000 psi (69 bar)
- Includes P-235 nuts and P-200 ferrules
Tee Assembly
P-800 / -
- 1/4-28 flat bottom port
- Ø.062" thru hole
- Natural PEEK material
- Recommended for pressures up to 500 psi (34 bar)
- Includes P-335 nuts and P-300 ferrules
- 1/4-28 flat bottom for 1/16" OD tubing
- Ø.020" thru hole
- Natural ETFE material
- Recommended for pressures up to 1000 psi (69 bar)
- Includes P-245 nuts and P-200N ferrules
Tee & Crosses
Low Pressure Tees and Crosses offer a unique design for joining multiple tubing and fittings together. They are available in two inert polymers and can handle pressures to 500 psi (34 bar) or 1,000 psi (69 bar), depending upon the configuration of the products. Our Tees & Crosses are designed with handy mounting holes. All ETFE Tees and Crosses ship complete with 1/4-28 PFA Flangeless nuts and ETFE ferrules, while their PEEK polymer counterparts ship with 1/4-28 PEEK nuts and ETFE ferrules.
