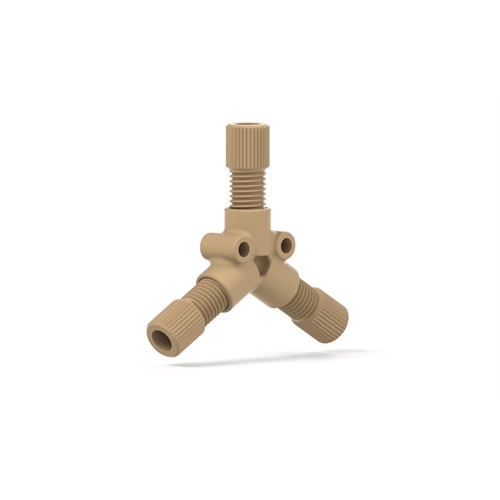

Y Assembly PEEK 3/16"

IDEX Part Number: P-515  /

Our PEEK Y Connector Assembly can split a stream or join two streams together similar to a T design. Unlike a T the geometry of the Y design reduces turbulence and improves analytical results. It is for 3/16” tubing, and has 5/16-24 internal threading with a 0.125” thru-hole. This assembly comes with (3)OD x P-132 Flangeless Fittings.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 43.49 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 500
For Tubing OD (in) 3/16
Material PEEK
Pressure Rating Max (bar) 34
Swept Volume µL 47.7
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.125
Thru hole (mm) 3.2
TopicDescription
Flangeless Fitting System Connection GuideUse this guide to connect your fluidic path.
