Y Assembly PEEK 1/4-28 .060in

IDEX Part Number: P-514  /

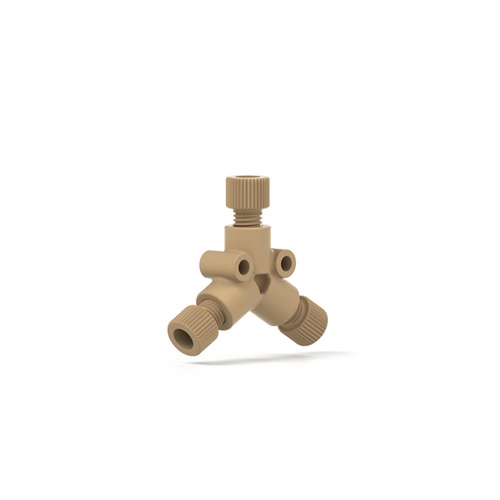

Our PEEK Y Connector assembly is for 1/8OD tubing. Our Y Connectors can split a stream or join two streams together similar to a T design. Unlike the T, the geometry of the Y design reduces turbulence and improves analytical results. This assembly comes with (3)OD x P-335 Flangeless Fittings.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 42.67 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 500
For Tubing OD (in) 1/8
Material PEEK
Pressure Rating Max (bar) 34
Swept Volume µL 13.6
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.06
Thru hole (mm) 1.5
