Y Assembly PEEK 1/4-28 .040in

IDEX Part Number: P-513  /

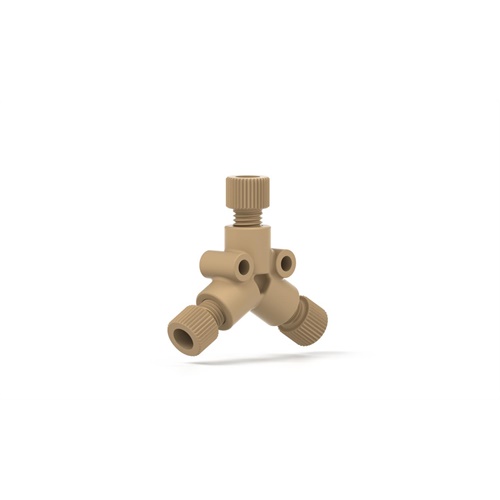

Our PEEK Y Connector Assembly can split a stream or join two streams together similar to a T design. Unlike a T the geometry of the Y design reduces turbulence and improves analytical results. It is for 1/8 OD tubing. This assembly comes with (3)OD x P-335 Flangeless Fittings.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 43.49 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 500
For Tubing OD (in) 1/8
Material PEEK
Pressure Rating Max (bar) 34
Swept Volume µL 6
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.04
Thru hole (mm) 1
TopicDescription
Flangeless Fitting System Connection GuideUse this guide to connect your fluidic path.
