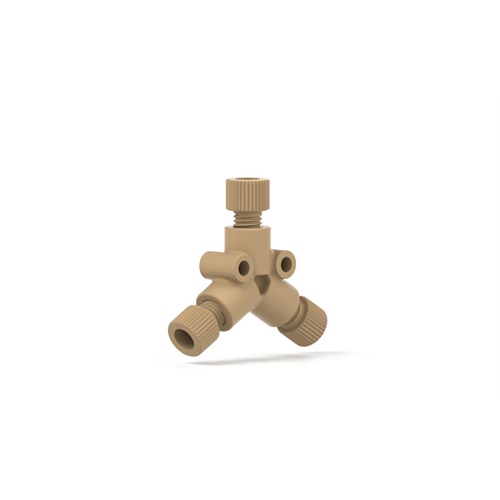

Our PEEK Y Connector Assembly can split a stream or join two streams together similar to a T design. Unlike a T the geometry of the Y design reduces turbulence and improves analytical results. It is for 1/16 OD tubing. This assembly comes with (3) P-235 Flangeless Fittings.
Looking for a CAD file for this product? Request a CAD now!
Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.
-
EachUS Domestic pricing – contact your local distributor for other currency list prices
-
45.03 USD EachUS Domestic pricing – contact your local distributor for other currency list prices
-
-
0.000.00 -
-
- Notify me when available
| Material | PEEK |
|---|---|
| Pressure Rating Max (psi) | 1000 |
| For Tubing OD (in) | 1/16 |
| Pressure Rating Max (bar) | 69 |
| Swept Volume µL | 1.7 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
| Thru hole (in) | 0.02 |
| Thru hole (mm) | 0.5 |
total selected
Clear selection
Select all 2 products from all pages.
1/16" OD Ferrule, Flangeless
P-200X / 0
- For use with 1/16” OD tubing mating with flat bottom ports
- Blue ETFE material
- Recommended for pressures up to 2000 psi (138 bar)
- 10 per pack
1/8" OD Fitting, Flangeless Short
XP-335X / 0
- For use with 1/8" OD tubing mating with a 1/4-28 port
- Short nut for space limited applications
- Natural PEEK nut, yellow ETFE ferrule
- Include P-300 Flangeless ferrule
- Recommended for pressures up to 500 psi (34 bar)
- 10 per pack
1 of 1
| Topic | Description |
| Flangeless Fitting System Connection Guide | Use this guide to connect your fluidic path. |
total selected
Clear selection
Select all 2 products from all pages.
1/16" OD Ferrule, Flangeless
P-200X / 0
- For use with 1/16” OD tubing mating with flat bottom ports
- Blue ETFE material
- Recommended for pressures up to 2000 psi (138 bar)
- 10 per pack
1/8" OD Fitting, Flangeless Short
XP-335X / 0
- For use with 1/8" OD tubing mating with a 1/4-28 port
- Short nut for space limited applications
- Natural PEEK nut, yellow ETFE ferrule
- Include P-300 Flangeless ferrule
- Recommended for pressures up to 500 psi (34 bar)
- 10 per pack
1 of 1
| Topic | Description |
| Flangeless Fitting System Connection Guide | Use this guide to connect your fluidic path. |
