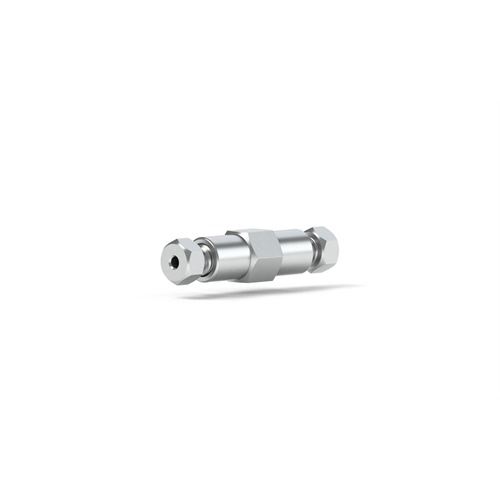

VHP+ Stainless Steel Union Assembly 10-32 1/16

IDEX Part Number: UH-402  /

Our VHP+ Stainless Steel Union Assembly is precision machined from 316 stainless steel. Our mechanically strong and reliable union assembly offers true zero dead volume (ZDV) allowing tubing to be joined without interrupting the fluidic path. It is designed for 1/16OD tubing , thru-hole of .010 and has a 10-32 Coned thread port configuration. It comes with (2)VHP-200 .

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 60.78 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 30000
For Tubing OD (in) 1/16
Material Stainless Steel
Pressure Rating Max (bar) 2070
Thread Port Configuration Coned 10-32
Thru hole (in) 0.01
Thru hole (mm) 0.25
