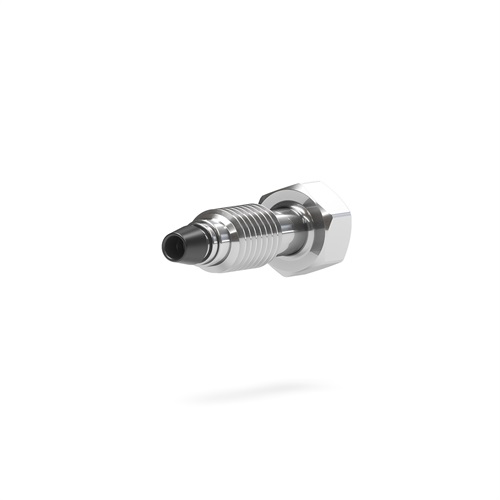

VHP Stainless Steel Fitting 10-32 Coned, for 1/16" OD, Long Single

IDEX Part Number: VHP-205  /

Our all Stainless Steel Long Very High Pressure Fitting (VHP) offer an innovative design that successfully withstands extreme pressures. Included is a unique ferrule system with two compressions points that provide twice the grip of a standard ferrule. Our VHP Fittings are ideal for today's high performance analytical systems. It has a 10-32 Coned thread port configuration and is for 1/16 OD tubing. The VHP-205 requires 20 in-lbs of tightening torque.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 29.08 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 30000
For Tubing OD (in) 1/16
Length Style Long
Material Stainless Steel
Pressure Rating Max (bar) 2070
Thread Port Configuration Coned 10-32

Specifications
