VHP Stainless Steel Cross 10-32 1/16

IDEX Part Number: UH-429  /

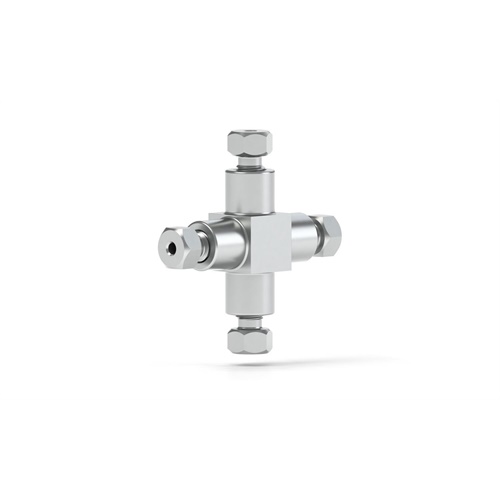

Our VHP Stainless Steel Cross is precision machined from durable stainless steel. It is mechanically designed for bringing together four pieces of tubing. Our Cross has a very high pressure rating of 30,000 psi (2070 bar). It is designed for 1/16OD tubing and includes (4) VHP-200 Fittings.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 212.12 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 30000
For Tubing OD (in) 1/16
Material Stainless Steel
Pressure Rating Max (bar) 2070
Swept Volume nL 0.72
Thread Port Configuration Coned 10-32
Thru hole (in) 0.02
Thru hole (mm) 0.5
