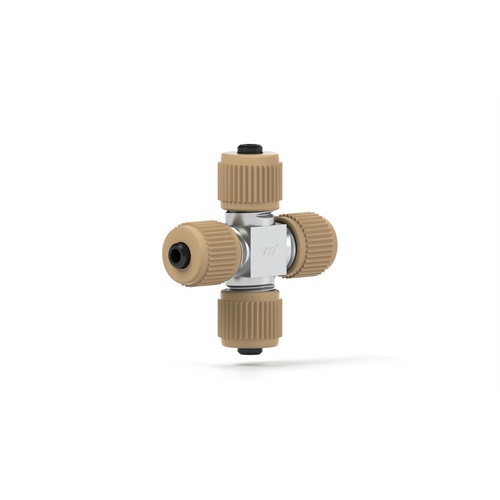

VHP MicroCross Assembly for 1/32" OD

IDEX Part Number: UH-702  /

Our VHP MicroCross Assembly's unique design creates a direct connection for tubing; no sleeves required. It is manufactured from durable stainless steel and features a small thru-hole and very low internal volume. Stainless steel delivers excellent chemical compatibility and conductivity making it an ideal choice when electrical applications are in use. It is for 1/32OD tubing and has a thread of 5/16-24 Coned. It comes with (4) PK-112 and (4)P-416 Fittings.
  • Price Not Available.
  • Each
  • Price Not Available.
  • 371.20 USD Each
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 15000
For Tubing OD (in) 1/32
Pressure Rating Max (bar) 1034
Swept Volume nL 101
Thread Port Configuration Coned 5/16-24
Thru hole (in) 0.01
Thru hole (mm) 0.25

Specifications
