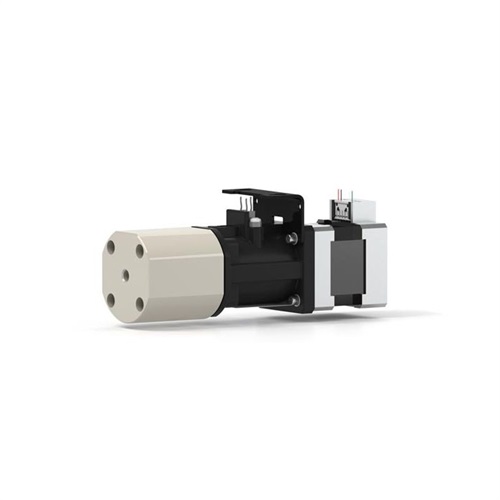

VFP17

IDEX Part Number: VFP17 /

Standard Sizes	25 µL 50 µL 100 µL 250 µL 500 µL 1 mL 2.5 mL 5 mL
Max Operating Pressure psi	Varies by pump size.
Max Operating Pressure Bar	Varies by pump size.
Dispense Rate Max (mL/min)	1.8 (25 µL) to 250 (5 mL)
Dispense Precision	2% dispense: < 1.0% CV
Wetted Materials: Pump Head	Acrylic Standard; Black PEEK, Ultem®, others available
Wetted Materials: Piston	TZP Ceramic; Sapphire
Wetted Materials: Seal	UHMWPE, Viton, Customizable
Operating Temperature° F	60-100 F 15-45 C
Anticipated Life	5 million cycles
Voltage	24 V
Motor Encoder	Optional
Seal Wash	Optional
Port Threads	1/4-28 or M6
Home Position	Aspirate or Dispense

Standard Sizes: 25 µL 50 µL 100 µL 250 µL 500 µL 1 mL 2.5 mL 5 mL
Max Operating Pressure psi: Varies by pump size.
Max Operating Pressure Bar: Varies by pump size.
Dispense Rate Max (mL/min): 1.8 (25 µL) to 250 (5 mL)
Dispense Precision: 2% dispense: < 1.0% CV
Wetted Materials: Pump Head: Acrylic Standard; Black PEEK, Ultem®, others available
Wetted Materials: Piston: TZP Ceramic; Sapphire
Wetted Materials: Seal: UHMWPE, Viton, Customizable
Operating Temperature° F: 60-100 F 15-45 C
Anticipated Life: 5 million cycles
Voltage: 24 V
Motor Encoder: Optional
Seal Wash: Optional
Port Threads: 1/4-28 or M6
Home Position: Aspirate or Dispense
