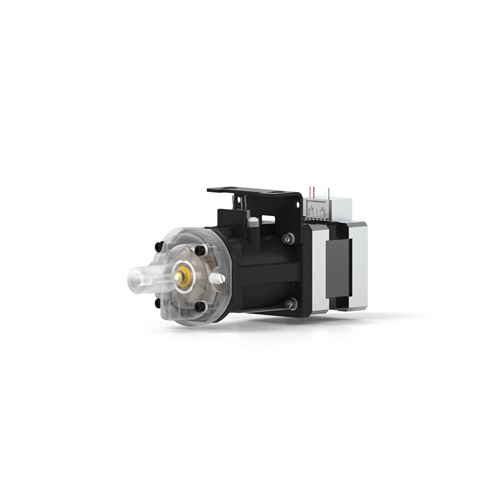

V17 1000µL (4000 Resolution)

IDEX Part Number: V17-1000C-402XXD-EB /

Pump Volume (µL)	1000
Recommended Max Pump Operating Pressure	320 psi (Max pressure achieved at <35% max speed based on half coil chopper drive operation at 24V)
Pump Max Dispense Rate (mL/min)	30mL/min (Max speed achieved at <35% max pressure based on half coil chopper driver operation at 24V)
Pump Precision	20µL < 1%
Pump Wetted Materials	Acrylic, UHMW, Viton, Zirconia
Pump Fluidic Ports	Two 1/4-28 UNF
Home Position	Dispense
Pump Resolution (Full Step)	4000
Anticipated Life	2 million cycles

Topic	Description
Pump Selection Guide	From conventional diagnostic devices to modern molecular platforms, with IDEX Health & Science pumps, you can confidently implement sophisticated fluid actuation sequences while de-risking your development efforts. Learn more in our pump selection guide.

Pump Volume (µL): 1000
Recommended Max Pump Operating Pressure: 320 psi (Max pressure achieved at <35% max speed based on half coil chopper drive operation at 24V)
Pump Max Dispense Rate (mL/min): 30mL/min (Max speed achieved at <35% max pressure based on half coil chopper driver operation at 24V)
Pump Precision: 20µL < 1%
Pump Wetted Materials: Acrylic, UHMW, Viton, Zirconia
Pump Fluidic Ports: Two 1/4-28 UNF
Home Position: Dispense
Pump Resolution (Full Step): 4000
Anticipated Life: 2 million cycles
