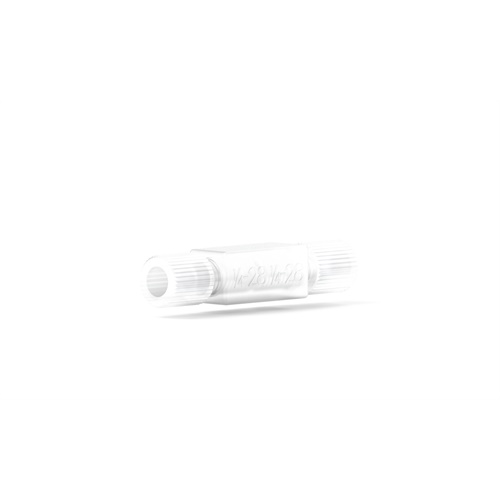

Union ETFE w/.030 thru hole

IDEX Part Number: P-710  /

Our Low Pressure Union provides numerous options for bringing together two fittings with a ¼-28 flat-bottom threading. Manufactured from ETFE it delivers excellent chemical resistance. It has a thru hole of .030 and a pressure rating of 1000psi (69 bar).

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 22.37 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 1000
For Tubing OD (in) 1/16
Pressure Rating Max (bar) 69
Swept Volume µL 0.93
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.03
Thru hole (mm) 0.75
TopicDescription
Flangeless Fitting System Connection GuideUse this guide to connect your fluidic path.
