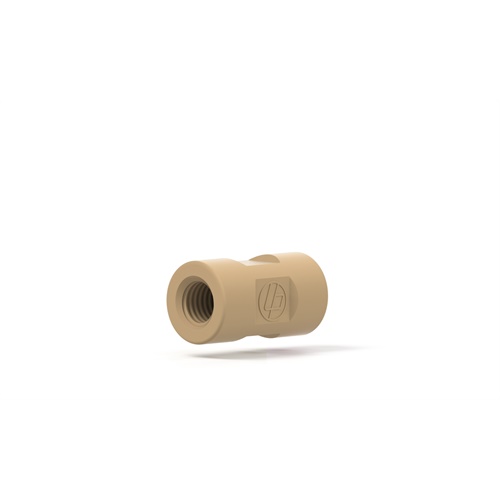

Union Body PEEK .020 thru hole

IDEX Part Number: P-702-01  /

Our low pressure PEEK Union Body efficiently connects tubing in low pressure regions of a system where a dependable connection is imperative. Made from resilient PEEK it delivers excellent solvent resistance. It is designed for 1/16OD Tubing, has a 1/4-28 Flat Bottom thread port style and comes in natural color.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 15.99 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 1000
Color Natural
For Tubing OD (in) 1/16
Material PEEK
Pressure Rating Max (bar) 69
Swept Volume µL 0.41
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.02
Thru hole (mm) 0.5
