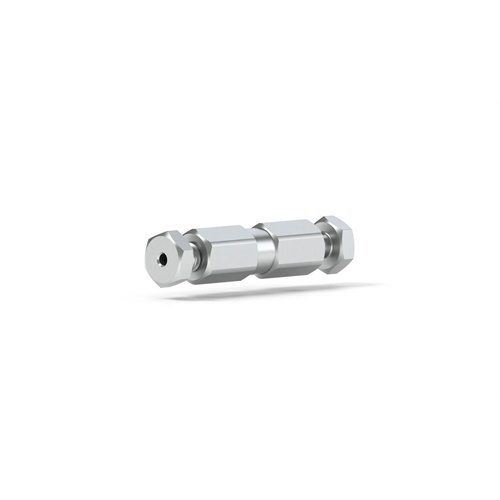

Union Assembly ZDV Waters® Type

IDEX Part Number: U-412  /

Our ZDV Union Assembly is Waters Compatible and precision machined from 316 stainless steel. Our mechanically strong and reliable union offers zero dead volume (ZDV) allowing tubing to join without interrupting the fluidic path. It is designed for 1/16OD tubing and has a 10-32 Coned thread port configuration. It comes with (2) U-410/U-401 stainless steel fittings.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 45.03 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 20000
Material Stainless Steel
Pressure Rating Max (bar) 1380
Thread Port Configuration Coned 10-32
Thru hole (in) 0.02
Thru hole (mm) 0.5

Specifications
