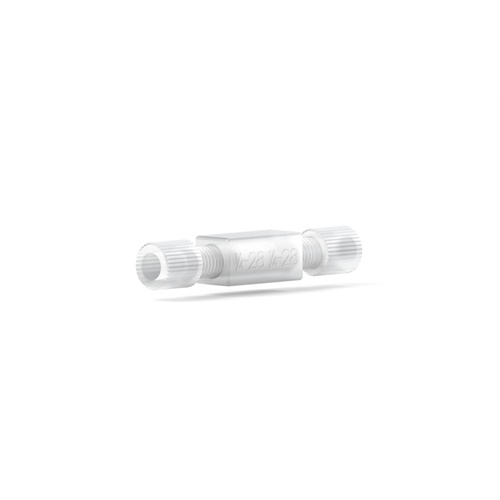

Union Assembly ETFE, for 1/8" OD

IDEX Part Number: P-631  /

Our low pressure Standard Union efficiently connects tubing in low pressure regions of a system where a dependable connection is imperative. Our union provides true ZDV which allows tubing join together without interrupting the fluidic path. Made from ETFE it delivers excellent solvent resistance. It is designed for 1/8OD Tubing, has a 1/4-28 Flat Bottom thread port style and comes in natural color. It includes (2) P-300N ferrules and (2) P-345 Flangeless Fittings.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 13.85 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 1000
Color Natural
For Tubing OD (in) 1/8
Pressure Rating Max (bar) 69
Thread Port Configuration Flat-Bottom 1/4-28
TopicDescription
Flangeless Fitting System Connection GuideUse this guide to connect your fluidic path.
