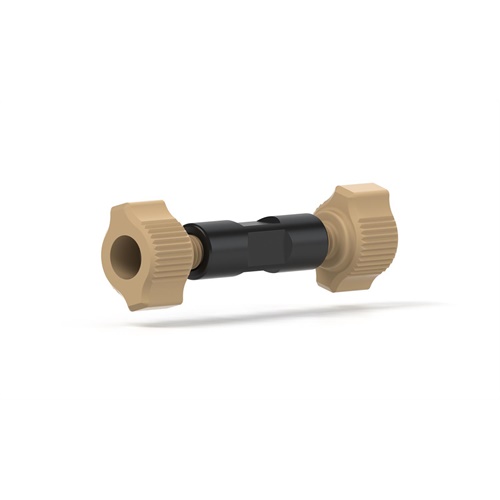

Union Assembly PEEK 10-32 .050 thru-hole with Fittings

IDEX Part Number: P-760  /

Our PEEK ZDV Union Assembly ensures a reliable connection for tubing. ZDV - Zero Dead Volume allows tubing to butt end-to-end keeping the path of fluid flowing. This Union effectively addresses this need in the high pressure region of a system where a dependable connection is imperative. It includes (2) F-300 Fingertight Fittings.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 41.46 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 5000
Material PEEK
Pressure Rating Max (bar) 345
Swept Volume µL 1.2
Thread Port Configuration Coned 10-32
Thru hole (in) 0.05
Thru hole (mm) 1.3
