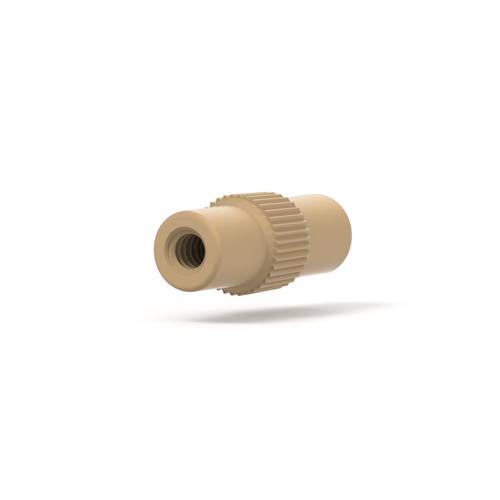

Union Assembly MicroTight® PEEK

IDEX Part Number: P-720  /

Our MicroTight Unions Assembly is used specifically to easily connect capillary tubing together. True ZDV(Zero Dead Volume) allows two pieces of tubing to connect directly to each other using the included gauge and plug to ensure proper alignment. It has a 6-32 Thread Port Configuration. It includes (2) F-125 fittings and (1) P-553 Gauge.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 47.01 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 4000
For Tubing OD (in) 0.025
Material PEEK
Pressure Rating Max (bar) 276
Thread Port Configuration Coned 6-32
Topic Description
MicroTight Union Instruction Guide Learn how to use a MicroTight Union from IDEX Health & Science
MicroTight® Fittings Used with Fused Silica Tubing Please take care when tightening the Micro-Fingertight fittings included in this package, making sure to only tighten sufficiently to prevent leaks from occurring. Due to the nature of most capillary-sized tubing, it is possible to damage the tubing if the fittings are overtightened.

Specifications

Topic Description
MicroTight Union Instruction Guide Learn how to use a MicroTight Union from IDEX Health & Science
MicroTight® Fittings Used with Fused Silica Tubing Please take care when tightening the Micro-Fingertight fittings included in this package, making sure to only tighten sufficiently to prevent leaks from occurring. Due to the nature of most capillary-sized tubing, it is possible to damage the tubing if the fittings are overtightened.
