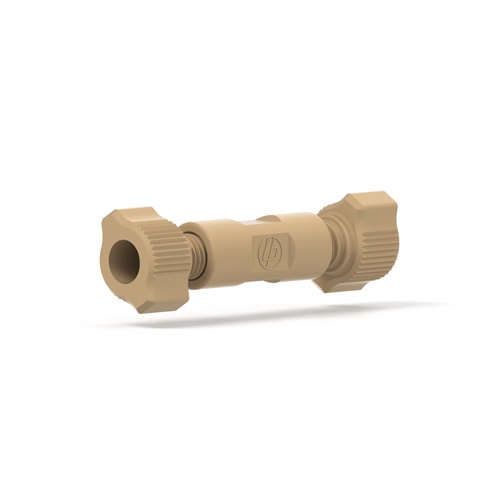

Union Assembly High Pressure PEEK .020

IDEX Part Number: P-705  /

Our PEEK High Pressure Union Assembly is specifically designed to bring two pieces of tubing together. It is also ideal for joining a soft, flexible tube to a rigid tube or to connect a syringe to a piece of tubing. It has a .020 thru hole and a 5000 psi (345 bar) pressure rating.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 57.61 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 5000
For Tubing OD (in) 1/16
Material PEEK
Pressure Rating Max (bar) 345
Thread Port Configuration Coned 1/4-28
Thru hole (in) 0.02
Thru hole (mm) 0.5
