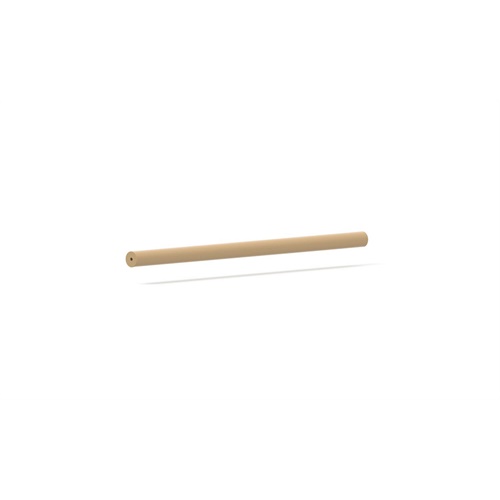

Tubing Sleeve PEEK Orange 1/16 D x .016" x 1.3"

IDEX Part Number: F-230  /

This PEEK Tubing Sleeve designed specifically for connecting capillary tubing to standard 10-32 ports. Manufactured from biocompatible PEEK it offers excellent chemical resistance. It does require the use of a wrench tightened stainless steel nuts. It comes in orange.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 5.49 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Length (in) 1.3
Pressure Rating Max (psi) 6000
Color Orange
For Tubing OD (µm) 350-390
Material PEEK
Pressure Rating Max (bar) 414
Tubing Sleeve ID (in) 0.016
Tubing Sleeve OD (in) 1/16
