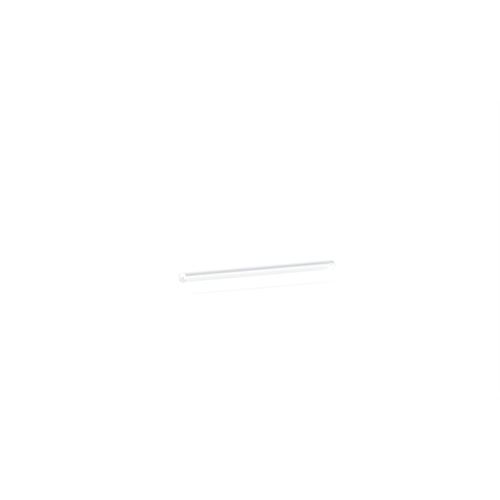

Tubing Sleeve FEP Natural 1/32" OD x .009" ID x1.6"

IDEX Part Number: F-373  /

Call 1-800-426-0191 for more information on how to purchase this product.

Our FEP Tubing Sleeve facilitates easy connection of capillary tubing to standard, coned ports. Manufactured from FEP they offer enhanced chemical compatibility. By using a sleeve instead of a modified ferrule, dead volume in the receiving port is minimized, ensuring better results. It comes in natural color.

Looking for a CAD file for this product? Request a CAD now!

Length (in) 1.6
Pressure Rating Max (psi) 1750
Color Natural
For Tubing OD (µm) 175-215
Pressure Rating Max (bar) 121
Tubing Sleeve OD (in) 1/32
TopicDescription
Capillary Tubing Connectors Using Tubing Sleeves Instruction GuideFind instructions how to insert your capillary tubing into the appropriate tubing sleeve

Specifications

TopicDescription
Capillary Tubing Connectors Using Tubing Sleeves Instruction GuideFind instructions how to insert your capillary tubing into the appropriate tubing sleeve
