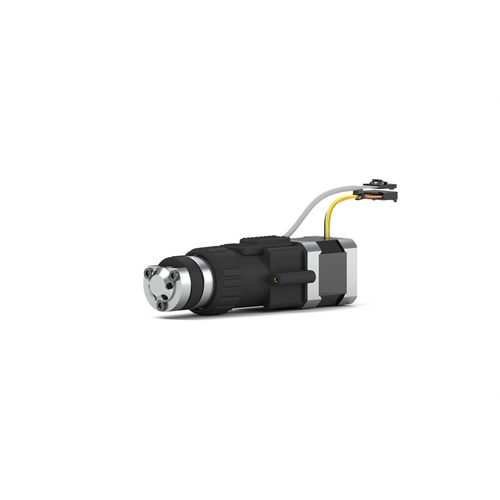

Injection Valve Vertical Port, 2 Position/6 Port

IDEX Part Number: HT718-110 /

Specifications
Valve Resources

Valve Family	TitanHT
Pressure Rating Max (psi)	18000
Valve Type	Injector, Injector Vertical Port, Ultra High Pressure
Ports	6
Positions	2
Pressure Rating Max (bar)	1241
Thread Port Configuration Coned	10-32

Topic	Description
Understanding and Testing Fluid Flow for Custom Valve Design White Paper	There are many factors taken into consideration during the development of a valve design. Prototyping the complex geometries of valve stators can be expensive and time-consuming but with the use of simulation tools, we can iterate multiple designs quickly and select the most desirable solutions before the first parts are manufactured. Learn more.
BioVersal Sample Loop Data Sheet	IDEX Health & Science BioVersal^™ sample loops are 100% bioinert, making them ideal when injecting biological or “sticky” samples. These sample loops utilize our unique patented MarvelX technology to auto adjust to various port depths. The outcome — zero dead volume and better chromatographic results. Download this data sheet and learn more.
Fittings 101 Guide	Discover the fundamentals of equipment fittings and accessories, as well as some basics about liquid chromatography as an analytical technique.
Chemical Compatibility Guide	This Chemical Compatibility guide will allow you to either check what materials will work with the chemicals you are using or planning to use; or view what compatibility ratings are given to a material you are planning to use.

Valve Family: TitanHT
Pressure Rating Max (psi): 18000
Valve Type: Injector, Injector Vertical Port, Ultra High Pressure
Ports: 6
Positions: 2
Pressure Rating Max (bar): 1241
Thread Port Configuration Coned: 10-32
