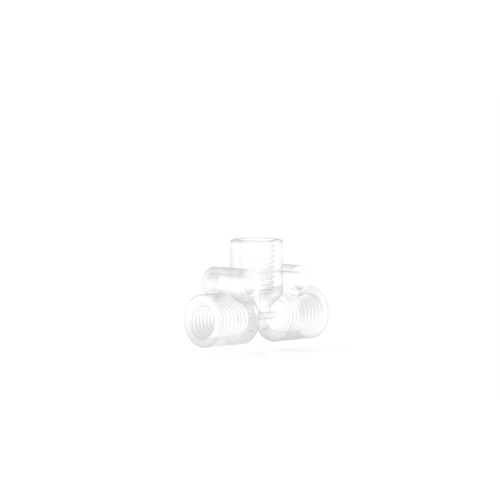

Tee Body ETFE, for 1/8" OD, .050 thru hole

IDEX Part Number: P-633-01  /

Our ETFE Low Pressure Tee Assembly can handle a pressure rating 500 psi(34 bar). It is designed with convenient mounting holes. The P-633 is designed for 1/8OD tubing.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 31.01 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 500
For Tubing OD (in) 1/8
Pressure Rating Max (bar) 34
Swept Volume µL 17.5
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.05
Thru hole (mm) 1.25
TopicDescription
Flangeless Fitting System Connection GuideUse this guide to connect your fluidic path.
