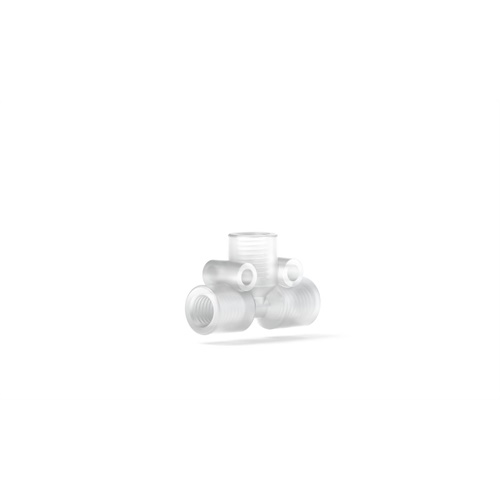

Tee Assembly ETFE, for 1/16" OD, .020 thru hole

IDEX Part Number: P-632  /

Our ETFE Low Pressure Tee Assembly can precisely handle a pressure rating 1000 psi (69 bar). It is designed with convenient mounting holes. This assembly is designed for 1/16OD tubing. It comes complete with (3) P-245 Nuts and (3) P-200N Ferrules.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 41.74 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 1000
For Tubing OD (in) 1/16
Pressure Rating Max (bar) 69
Swept Volume µL 2.9
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.02
Thru hole (mm) 0.5
