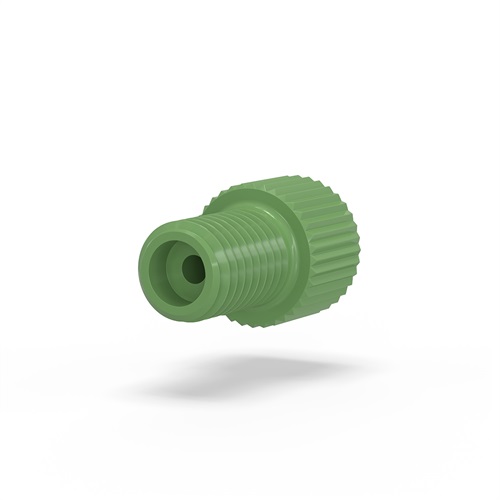

Super Flangeless PEEK Nuts delivers the highest pressure holding for flat bottom fittings that we offer. Manufactured from biocompatible PEEK it delivers excellent chemical resistance. Our short nut has a 1/4-28 Flat-Bottom port configuration and is for 1/16 or 1/32 tubing OD. It comes in natural, blue, black, green, gray, orange and red.
Looking for a CAD file for this product? Request a CAD now!
Looking to design this product into your instrument? Fill out this form for more information.
-
EachUS Domestic pricing – contact your local distributor for other currency list prices
-
7.96 USD EachUS Domestic pricing – contact your local distributor for other currency list prices
-
-
0.000.00 -
-
- Notify me when available
| Thread Port Design | 1/4-28 Flat-Bottom |
|---|---|
| Tubing OD | 1/16 inch, 1/32 inch |
| Material | PEEK |
| Fitting Type | Nut |
| Head Style | Standard Knurl |
total selected
Clear selection
Select all 1 products from all pages.
1/16" OD Ferrule, Super Flangeless
P-259X / 0
- For use with 1/16" OD tubing mating with a 1/4-28 or M6 flat bottom port
- Yellow ETFE ferrule, Stainless Steel lock-ring
- Recommended for pressures up to 1350 psi (93 bar)
- 10 per pack
1 of 1
| Topic | Description |
| Install Super Flangeless™ Ferrules | Learn how to install this ferrule system |
total selected
Clear selection
Select all 1 products from all pages.
1/16" OD Ferrule, Super Flangeless
P-259X / 0
- For use with 1/16" OD tubing mating with a 1/4-28 or M6 flat bottom port
- Yellow ETFE ferrule, Stainless Steel lock-ring
- Recommended for pressures up to 1350 psi (93 bar)
- 10 per pack
1 of 1
| Topic | Description |
| Install Super Flangeless™ Ferrules | Learn how to install this ferrule system |
