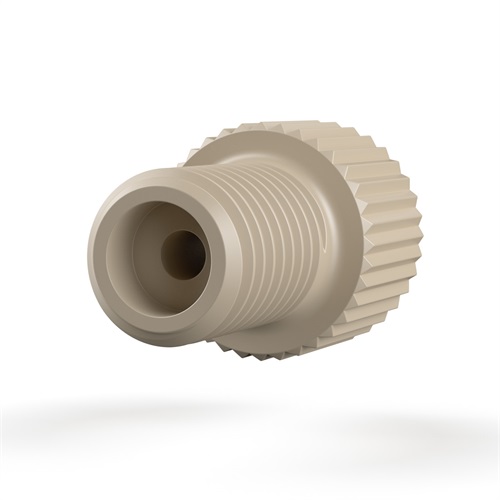

Our Super Flangeless™ Short Nut delivers the highest pressure holding for flat bottom fittings that we offer. It effectively eliminates loosening of fittings due to tube twisting and holds tight even during vibration. It has a 1/4-28 Flat-Bottom Port Configuration and is for 1/16 or 1/32 tubing OD. Our Nut come in a 10 Pack of natural or as single yellow.
Looking for a CAD file for this product? Request a CAD now!
Looking to design this product into your instrument? Fill out this form for more information.
-
EachUS Domestic pricing – contact your local distributor for other currency list prices
-
40.43 USD EachUS Domestic pricing – contact your local distributor for other currency list prices
-
-
0.000.00 -
-
- Notify me when available
| Thread Port Design | 1/4-28 Flat-Bottom |
|---|---|
| Tubing OD | 1/16 inch, 1/32 inch |
| Material | PEEK |
| Fitting Type | Nut |
| Head Style | Standard Knurl |
total selected
Clear selection
Select all 2 products from all pages.
1/16" OD Ferrule, Super Flangeless
P-250X / 0
- For use with 1/8" OD tubing mating with a 1/4-28 or M6 flat bottom port
- Natural PEEK ferrule, Stainless Steel lock-ring
- Recommended for pressures up to 2500 psi (172 bar)
- 10 per pack
1/16" OD Ferrule, Super Flangeless
P-259X / 0
- For use with 1/16" OD tubing mating with a 1/4-28 or M6 flat bottom port
- Yellow ETFE ferrule, Stainless Steel lock-ring
- Recommended for pressures up to 1350 psi (93 bar)
- 10 per pack
1 of 1
| Topic | Description |
| Install Super Flangeless™ Ferrules | Learn how to install this ferrule system |
total selected
Clear selection
Select all 2 products from all pages.
1/16" OD Ferrule, Super Flangeless
P-250X / 0
- For use with 1/8" OD tubing mating with a 1/4-28 or M6 flat bottom port
- Natural PEEK ferrule, Stainless Steel lock-ring
- Recommended for pressures up to 2500 psi (172 bar)
- 10 per pack
1/16" OD Ferrule, Super Flangeless
P-259X / 0
- For use with 1/16" OD tubing mating with a 1/4-28 or M6 flat bottom port
- Yellow ETFE ferrule, Stainless Steel lock-ring
- Recommended for pressures up to 1350 psi (93 bar)
- 10 per pack
1 of 1
| Topic | Description |
| Install Super Flangeless™ Ferrules | Learn how to install this ferrule system |
