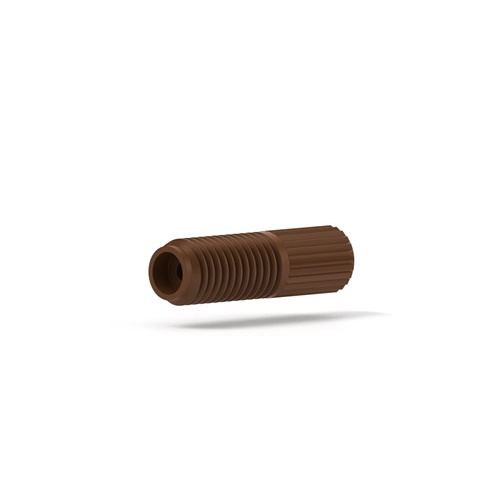

Our Super Flangeless Nut is excellent for those connections that need to be broken frequently and tubing assemblies because they swage onto the tubing. We manufactured this nut from PPS (polyphenylene sulfide) which offers high tensil strength and excellent chemical resistance. It has a 1/4-28 Flat-Bottom port configuration and is for 1/16 or 1/32OD Tubing.
Looking for a CAD file for this product? Request a CAD now!
Looking to design this product into your instrument? Fill out this form for more information.
-
EachUS Domestic pricing – contact your local distributor for other currency list prices
-
3.53 USD EachUS Domestic pricing – contact your local distributor for other currency list prices
-
-
0.000.00 -
-
- Notify me when available
| Thread Port Design | 1/4-28 Flat-Bottom |
|---|---|
| Tubing OD | 1/16 inch, 1/32 inch |
| Material | PPS |
| Fitting Type | Nut |
| Head Style | Headless Knurl |
total selected
Clear selection
Select all 4 products from all pages.
1/16" OD Ferrule, Super Flangeless
P-250X / 0
- For use with 1/8" OD tubing mating with a 1/4-28 or M6 flat bottom port
- Natural PEEK ferrule, Stainless Steel lock-ring
- Recommended for pressures up to 2500 psi (172 bar)
- 10 per pack
1/16" OD Ferrule, Super Flangeless
P-259X / 0
- For use with 1/16" OD tubing mating with a 1/4-28 or M6 flat bottom port
- Yellow ETFE ferrule, Stainless Steel lock-ring
- Recommended for pressures up to 1350 psi (93 bar)
- 10 per pack
PEEK Tubing 1/16" OD x .010" ID
1531B / 0
- 5 ft length
- Blue color
- Inert with a smooth finish
- ID and OD tolerance of +/-0.001”
1/32" OD Ferrule, Super Flangeless
P-248X / 0
- For use with 1/32" OD tubing
- Compatible with 1/4-28 and M6 flat bottom ports
- Green ETFE ferrule, Stainless Steel lock-ring
- Recommended for pressures up to 2500 psi (172 bar)
- 10 pieces per pack
