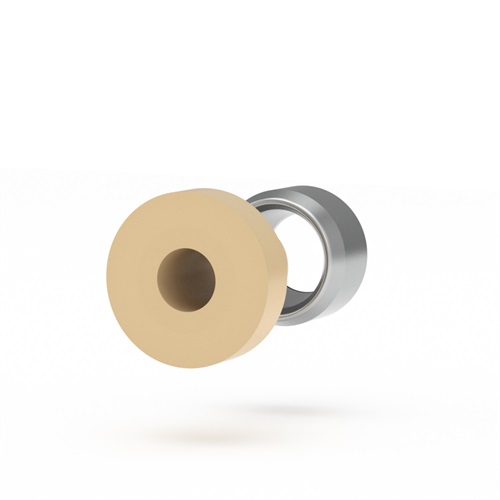

Super Flangeless™ Ferrule w/SST Ring, PEEK M6 Flat-Bottom, for 2mm OD Natural - Single

IDEX Part Number: P-357-2  /

Our PEEK Super Flangeless Ferrule w/Stainless Steel Ring is designed specifically to eliminate loosening of fittings due to tube twisting, hold tight even during vibration and delivers the highest pressure holding for flat bottom fittings that we offer. Our ferrule assembly has a M6 thread port configuration and is for 2mm OD tubing. It also comes in natural as a single and in a 10 pack.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 8.57 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 5000
Color Natural
For Tubing OD (mm) 2
Pressure Rating Max (bar) 345
Thread Port Configuration Flat-Bottom M6
TopicDescription
Install Super Flangeless™ FerrulesLearn how to install this ferrule system
