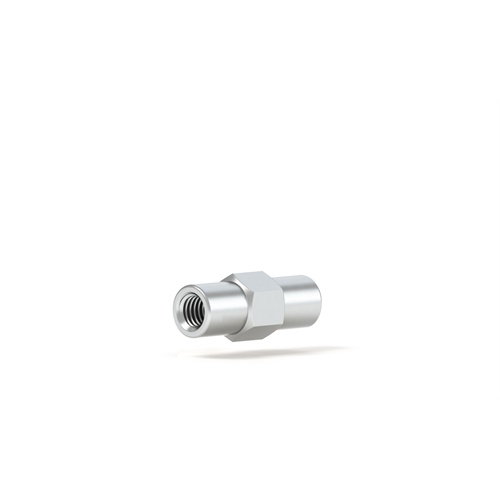

Stainless Steel Union Body True ZDV.062 thru hole

IDEX Part Number: U-438-01  /

Our VHP Stainless Steel Union Body is precision machined from 316 stainless steel. Our mechanically strong and reliable union offers true zero dead volume (ZDV) allowing tubing to be joined without interrupting the fluidic path. It is designed for 1/16OD tubing, thru-hole of .062 and has a 10-32 Coned thread port configuration.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 16.98 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
For Tubing OD (in) 1/16
Material Stainless Steel
Swept Volume nL Near 0
Thread Port Configuration Coned 10-32
Thru hole (in) 0.062
Thru hole (mm) 1.55

Specifications
