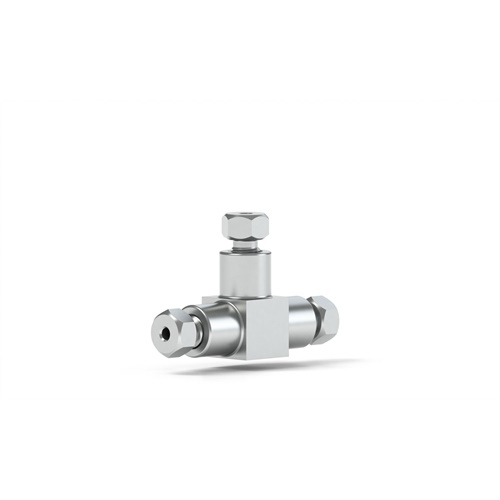

Stainless Steel Tee Assembly .020in thru hole

IDEX Part Number: U-428  /

Our durable Stainless Steel Male Tee Assembly offers consistent and reliable strength. It is designed to join tubing together and it delivers consistent high pressure ratings of 20,000 psi. It's It is for 1/16OD Tubing and is compatible with any 10-32 coned threaded fitting. This assembly comes with (3)U-400/401 stainless steel fittings and has a 0.020" thru-hole.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 114.83 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 20000
For Tubing OD (in) 1/16
Material Stainless Steel
Pressure Rating Max (bar) 1380
Swept Volume µL 0.57
Thread Port Configuration Coned 10-32
Thru hole (in) 0.02
Thru hole (mm) 0.5

Specifications
