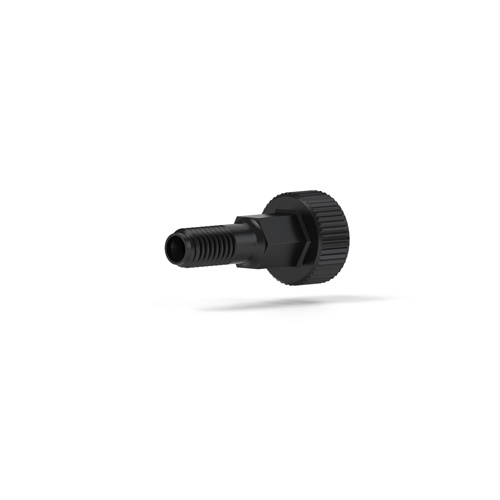

SealTight™ PEEK Fat-Head, 10-32 Coned, for 1/16" OD

IDEX Part Number: F-287  /

Our Two-Piece SealTight Fingertight Fitting is designed so that the nut and ferrule create dual compression. The forward cone on the ferrule provides outstanding gripping power and a leak-free seal. Manufactured for biocompatible PEEK it offers excellent chemical resistance. It has a 10-32 port configuration, is for 1/16OD tubing and comes with Ferrule F-192. It comes in black.
  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 8.18 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 7000-9000
Color Black
For Tubing OD (in) 1/16
Material PEEK
Pressure Rating Max (bar) 483-620
Thread Port Configuration Coned 10-32

Specifications
