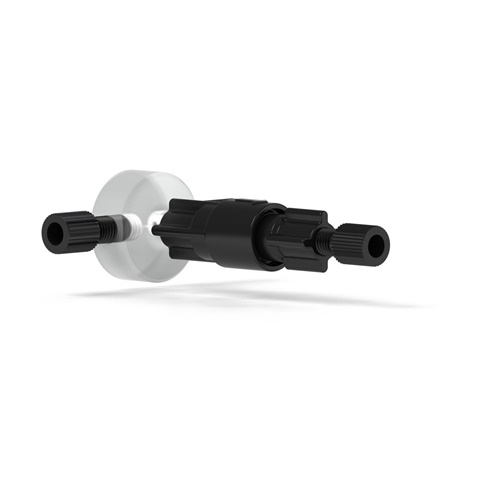

Press Relief Valve Assembly 100 psi

IDEX Part Number: U-456  /

Our Pressure Relief Valve Assembly specifically prevents system over-pressurization. It offers consistent protection to system components by diverting fluid flow automatically when inline pressure exceeds the set limit. Our assembly has a pressure setting of 100psi (7 bar). It comes with Flangeless Fittings for 1/16" OD tubing and wrenches for tightening.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 199.25 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Material PEEK
Pressure Setting (bar) 7
Pressure Setting (psi) 100
Swept Volume µL 139
TopicDescription
Pressure Relief Valve Instructions The Pressure Relief Valves and Pressure Relief Tee are supplied with Flangeless Fittings for 1/16” OD tubing.  Learn how to connect your tubing to the inlet and outlet of the valve tee using the included fitting and more.
Flangeless Fitting System Connection GuideUse this guide to connect your fluidic path.

Specifications

TopicDescription
Pressure Relief Valve Instructions The Pressure Relief Valves and Pressure Relief Tee are supplied with Flangeless Fittings for 1/16” OD tubing.  Learn how to connect your tubing to the inlet and outlet of the valve tee using the included fitting and more.
Flangeless Fitting System Connection GuideUse this guide to connect your fluidic path.
