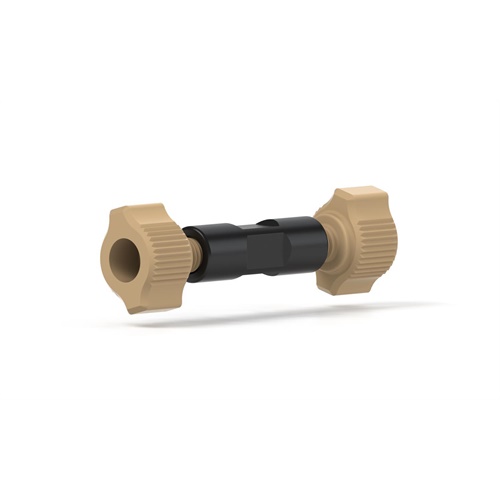

PEEK ZDV Union Assembly 10-32 Coned

IDEX Part Number: P-704  /

Our PEEK ZDV Union Assembly ensures a reliable connection for tubing. It effectively addresses this need in the high pressure region of a system where a dependable connection is imperative. Our assembly includes (2) F-300 Fingertight Fittings.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 41.07 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 5000
For Tubing OD (in) 1/16
Material PEEK
Pressure Rating Max (bar) 345
Swept Volume µL 0.28
Thread Port Configuration Coned 10-32
Thru hole (in) 0.02
Thru hole (mm) 0.5
TopicDescription
Connect Fingertight Fittings to Your Fluidic SystemLearn how to connect one-piece or two-piece fittings to tubing
