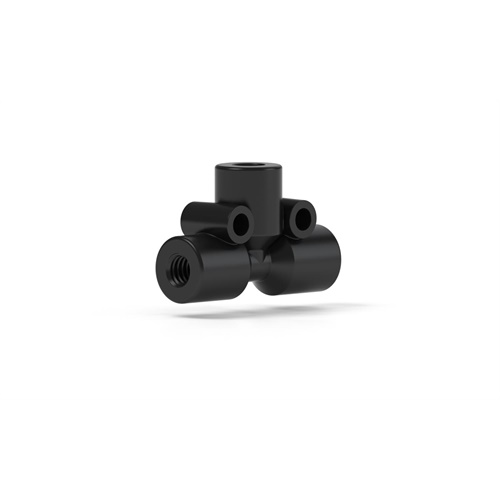

PEEK Tee Body .020 thru hole Hi Pressure

IDEX Part Number: P-727-01  /

PEEK High Pressure Tee Assembly is precisely designed to withstand environmental stresses in the high pressure regions of a system. It is made from inert PEEK, which is ideal for chemical resistance.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 23.91 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
For Tubing OD (in) 1/16
Material PEEK
Swept Volume µL 0.57
Thread Port Configuration Coned 10-32
Thru hole (in) 0.02
Thru hole (mm) 0.5

Specifications
