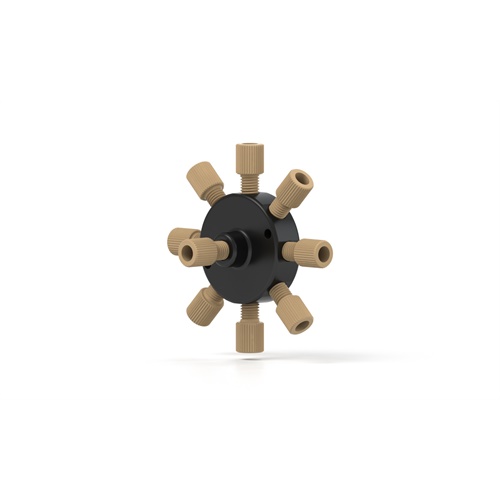

PEEK Manifold Assembly 9 Port, for 1/16" OD

IDEX Part Number: P-191  /

Our PEEK Manifold Assembly can be applied for a multi-Ports mixing chamber, gas sparging splitting unions or sample injection onto multi-well plates or a multiple direction flow path union. Our manifold is manufactured from biocompatible PEEK giving it excellent chemical resistance. It has 9 Ports and is for 1/16OD tubing. This assembly comes with Super Flangeless Fittings (9) P-255 and (9) P-250. .

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 185.45 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 1000
For Tubing OD (in) 1/16
Material PEEK
Pressure Rating Max (bar) 69
Swept Volume µL 139
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.04
Thru hole (mm) 1
TopicDescription
Install Super Flangeless™ FerrulesLearn how to install this ferrule system
