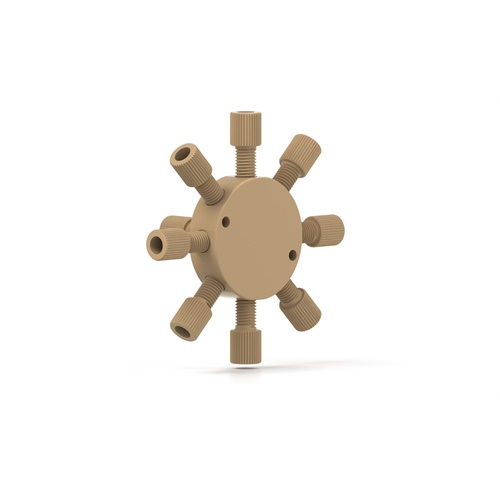

PEEK Manifold Assembly 7 Port, for 1/16" OD

IDEX Part Number: P-170  /

Our PEEK Manifold Assembly can be easily applied for a multi-Ports mixing chamber, combining several fluid streams into one or one stream split to several outlets. It can also be used as a gas sparging splitting unions or sample injection onto multi-well plates or a multiple direction flow path union. Our manifold is manufactured from biocompatible PEEK giving it excellent chemical resistance. It has 7 Ports and is for 1/16OD tubing. This assembly comes with Super Flangeless Fittings (7) F-331.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 158.61 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 5000
For Tubing OD (in) 1/16
Material PEEK
Pressure Rating Max (bar) 345
Swept Volume µL 2.2
Thread Port Configuration Coned 10-32
Thru hole (in) 0.02
Thru hole (mm) 0.5
