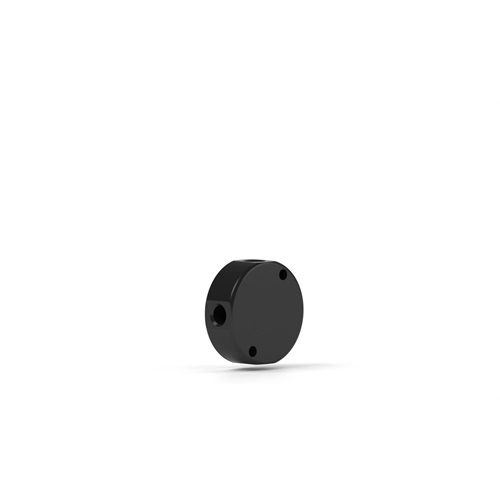

PEEK Manifold Assembly 6 Port, for1/8" OD

IDEX Part Number: P-153  /

Our PEEK Manifold Assembly can be easily applied for a multi-Ports mixing chamber, combining several fluid streams into one or one stream split to several outlets. It can also be used as a gas sparging splitting unions or sample injection onto multi-well plates or a multiple direction flow path union. Our manifold is manufactured from biocompatible PEEK giving it excellent chemical resistance. It has 6 Ports and is for 1/8OD tubing. This assembly comes with Super Flangeless Fittings (6) P-331 and (6) P-359.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 131.60 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 500
For Tubing OD (in) 1/8
Material PEEK
Pressure Rating Max (bar) 34
Swept Volume µL 62.3
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.062
Thru hole (mm) 1.6
TopicDescription
Install Super Flangeless™ FerrulesLearn how to install this ferrule system
