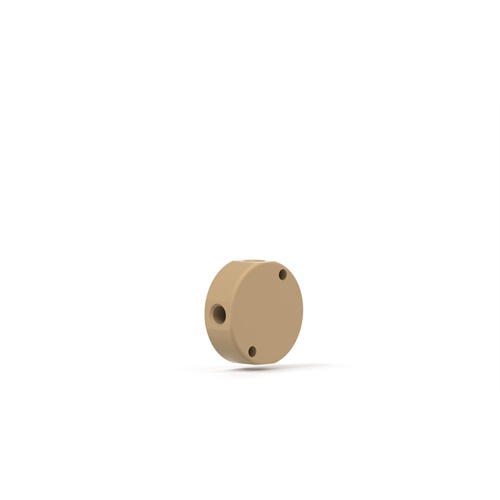

PEEK Manifold Assembly 5 Port, for 1/16" OD

IDEX Part Number: P-154  /

Our PEEK Manifold Assembly can be easily applied for a multi-Ports mixing chamber, combining several fluid streams into one or one stream split to several outlets. It can also be used as a gas sparging splitting unions or sample injection onto multi-well plates or a multiple direction flow path union. Our manifold is manufactured from biocompatible PEEK giving it excellent chemical resistance. It has 5 Ports and is for 1/16OD tubing. This assembly comes with Super Flangeless Fittings (5) P-255 and (5) P-250.
  • Price Not Available.
  • Each
  • Price Not Available.
  • 153.71 USD Each
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 1000
For Tubing OD (in) 1/16
Material PEEK
Pressure Rating Max (bar) 69
Swept Volume µL 22.3
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.04
Thru hole (mm) 1

Specifications
