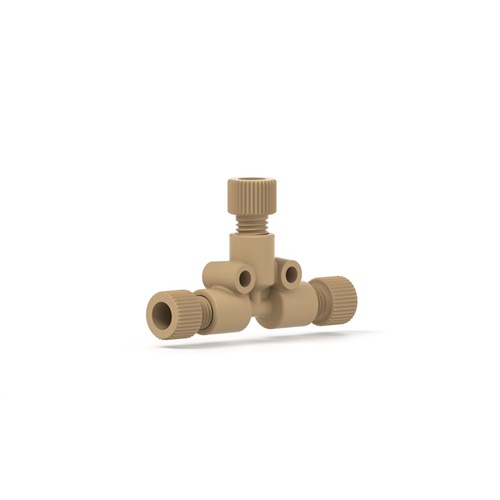

PEEK Low PressureTee Assembly 1/8" PEEK .050 thru hole

IDEX Part Number: P-713  /

Our PEEK Low Pressure Tee Assembly is strong and durable handling a pressure rating 500 psi . It has excellent chemical resistance to commonly used solvents. Our assembly comes equipped with conveniently placed mounting holes. This assembly comes complete with (3) P-335 Nuts.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 42.67 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 500
For Tubing OD (in) 1/8
Material PEEK
Pressure Rating Max (bar) 34
Swept Volume µL 17.5
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.05
Thru hole (mm) 1.25
