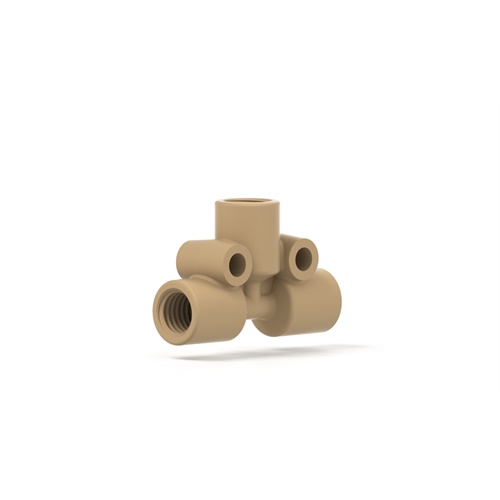

PEEK Low Pressure Tee Body 1/8" PEEK .050 thru hole

IDEX Part Number: P-713-01  /

Our PEEK Low Pressure Tee Assembly is strong and durable handling a pressure rating 500 psi . It has excellent chemical resistance to commonly used solvents. Our assembly comes equipped with conveniently placed mounting holes.
  • Price Not Available.
  • Each
  • Price Not Available.
  • 26.44 USD Each
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 500
For Tubing OD (in) 1/8
Material PEEK
Pressure Rating Max (bar) 34
Swept Volume µL 17.5
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.05
Thru hole (mm) 1.25

Specifications
