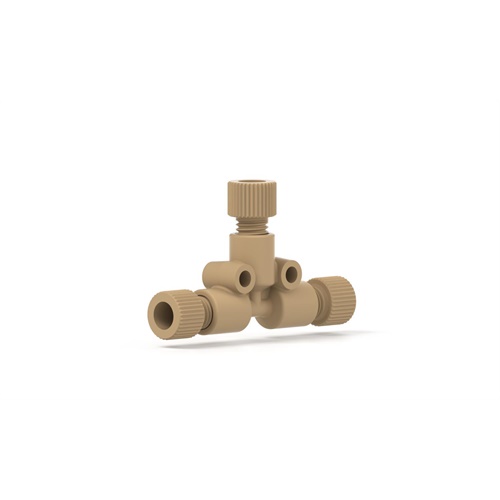

Our PEEK Low Pressure Tee Assembly is strong and durable handling a pressure rating 1000 psi (69 bar). It has excellent chemical resistance to commonly used solvents. Our assembly comes equipped with convenient mounting holes. This assembly includes (3) P-235 Nuts.
Looking for a CAD file for this product? Request a CAD now!
Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.
-
EachUS Domestic pricing – contact your local distributor for other currency list prices
-
44.18 USD EachUS Domestic pricing – contact your local distributor for other currency list prices
-
-
0.000.00 -
-
- Notify me when available
| Material | PEEK |
|---|---|
| Pressure Rating Max (psi) | 1000 |
| For Tubing OD (in) | 1/16 |
| Pressure Rating Max (bar) | 69 |
| Swept Volume µL | 2.9 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
| Thru hole (in) | 0.02 |
| Thru hole (mm) | 0.5 |
total selected
Clear selection
Select all 1 products from all pages.
1/16" OD Fitting, Flangeless Short
XP-235X / 0
- For use with 1/16" OD tubing mating with a 1/4-28 port
- Short nut for space limited applications
- Natural PEEK nut, blue ETFE ferrule
- Include P-200 Flangeless ferrule
- Recommended for pressures up to 2000 psi (1348bar)
- 10 per pack
1 of 1
| Topic | Description |
| Flangeless Fitting System Connection Guide | Use this guide to connect your fluidic path. |
total selected
Clear selection
Select all 1 products from all pages.
1/16" OD Fitting, Flangeless Short
XP-235X / 0
- For use with 1/16" OD tubing mating with a 1/4-28 port
- Short nut for space limited applications
- Natural PEEK nut, blue ETFE ferrule
- Include P-200 Flangeless ferrule
- Recommended for pressures up to 2000 psi (1348bar)
- 10 per pack
1 of 1
| Topic | Description |
| Flangeless Fitting System Connection Guide | Use this guide to connect your fluidic path. |
